Maintenance and S
ervi
ce Guide
6–3
7
6.

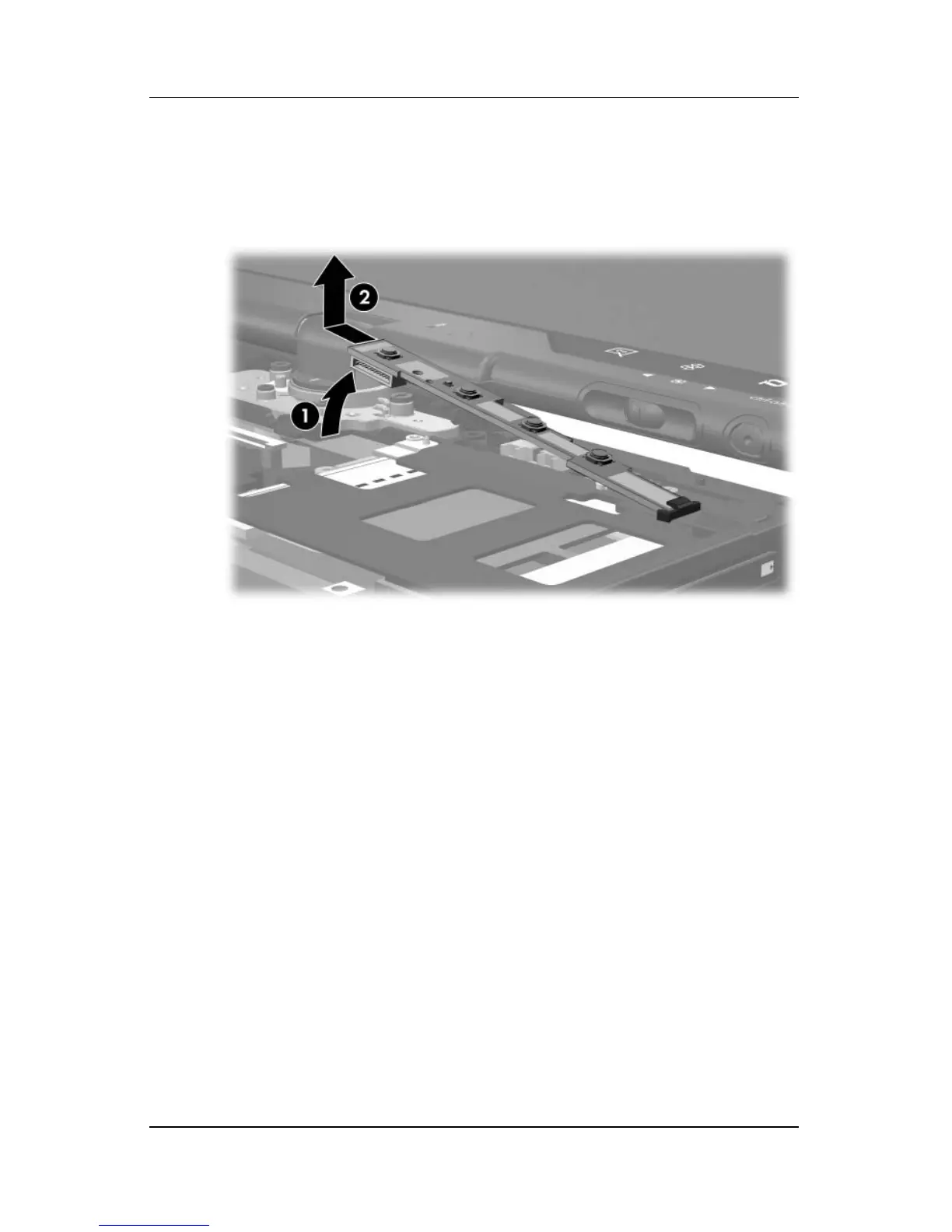

Lift the left side of the b
utton board
1
until it rests at angle.
7.
Remov
e the button board
2
.
R
emo
ving the Button Boar
d
Re
verse the abov
e procedure to install the button board.
