Removal and Replacement Procedures
Maintenance and Service Guide 6–57
2. Position the tablet PC with the front toward you.
3. Remove the four T8M2.0×5.0 screws 1 that secure the
system board to the tablet PC.
4. Remove the T8M2.0×7.5 screw 2 that secures the system
board spacer to the tablet PC.
5. Remove the system board spacer 3.

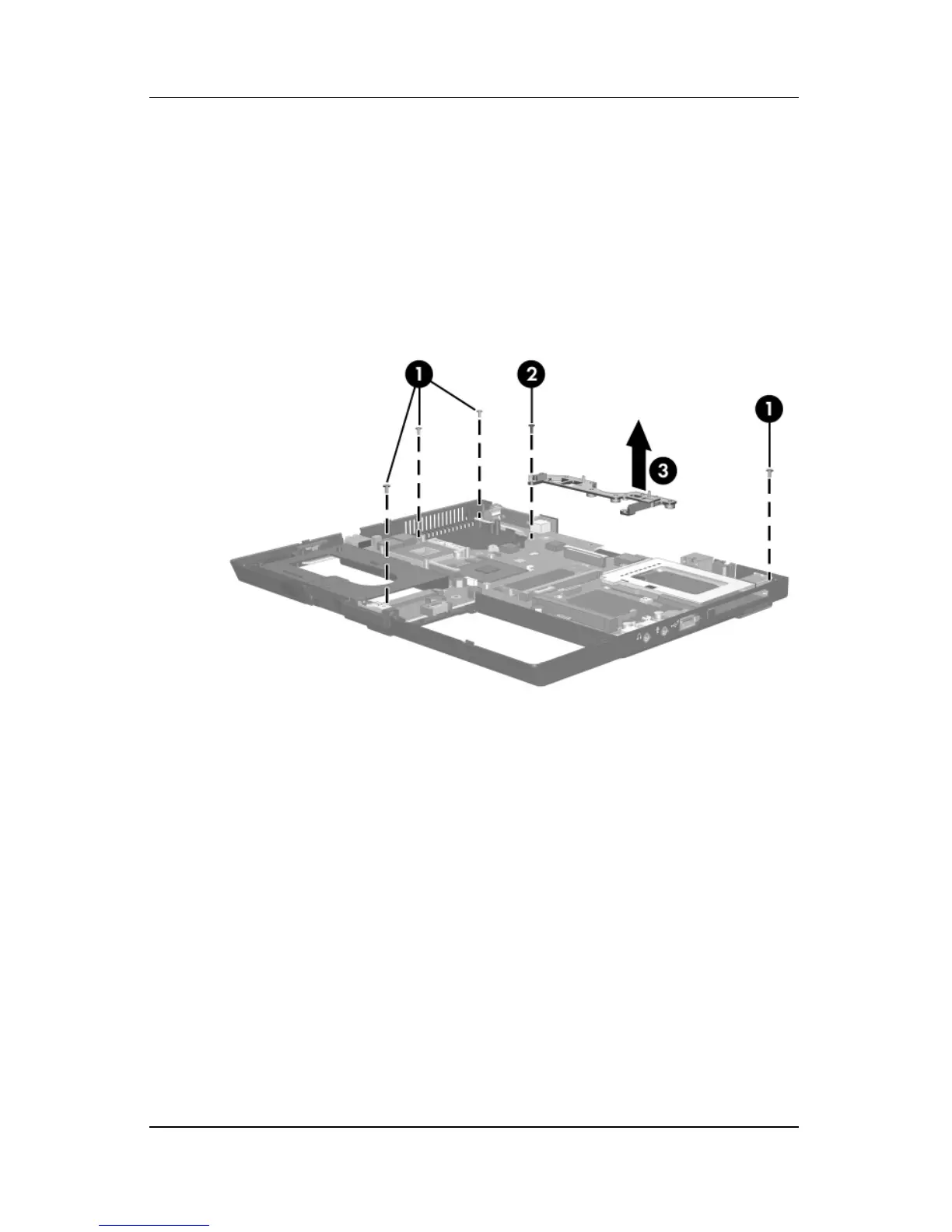

Removing the System Board Screws
