6–5
8
Maintenance and Serv
ice Guide
Re
mo
val and R
eplacement Pr
ocedures
6.

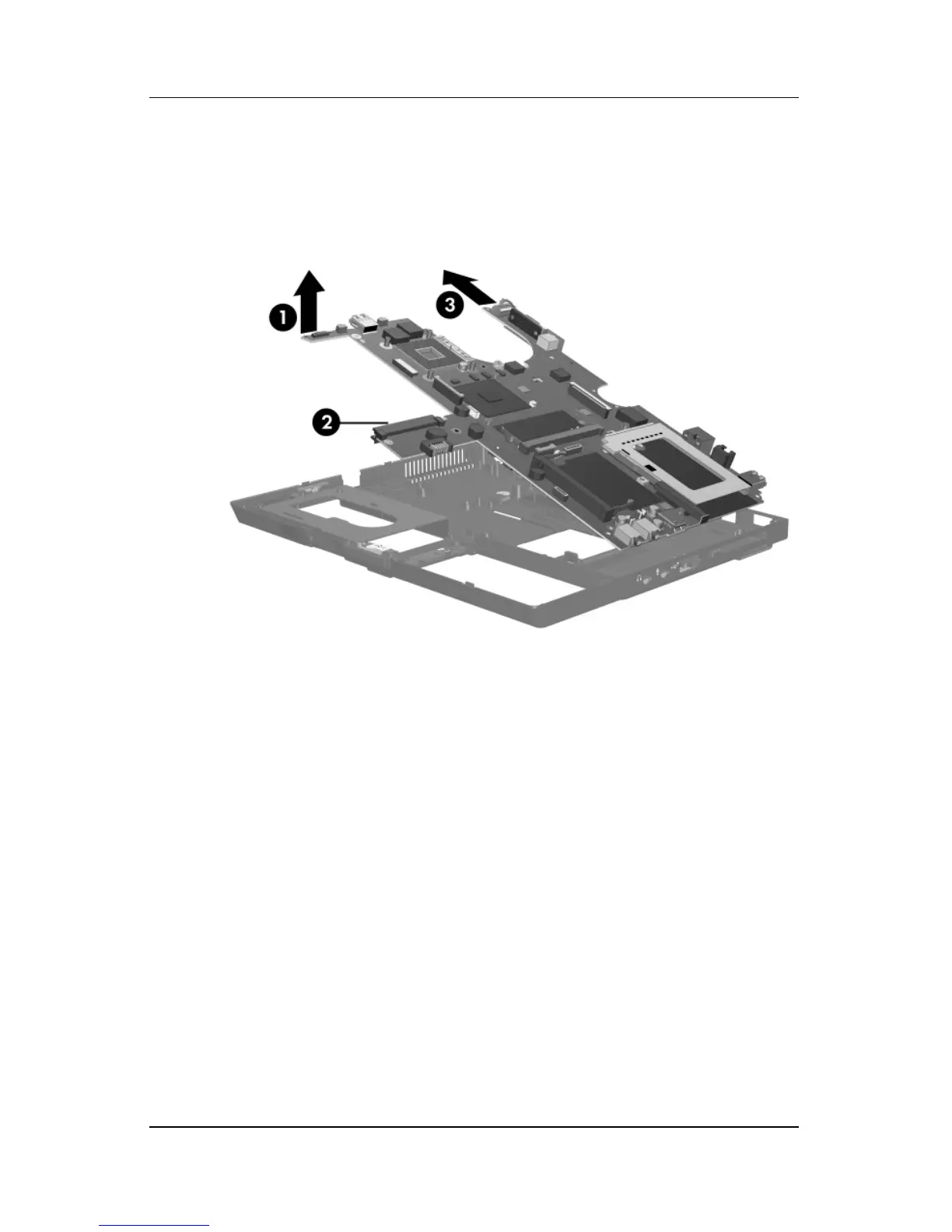

Lift the left side of the system board
1
until the hard dri
ve
connector
2
is clear of the base enclosure.
7.
Slide the system board to the left
3
to remov
e it.
R
emo
ving the S
y
stem Boar
d
Re
verse the abov
e procedure to install the system board.
145
147
Table of Contents
Default Chapter
1
Maintenance and Service
1
Table of Contents
3
1 Product Description
5
Features
6
Resetting the Tablet PC
8
Power Management
9
External Components
10
Front Components
10
Rear Panel Components
17
Top Components
21
Display Components
23
Bottom Components
25
Design Overview
26
2 Troubleshooting
27
Computer Setup
27
Accessing Computer Setup
28
Restoring Computer Setup Defaults
28
Selecting from the File Menu
29
Selecting from the Security Menu
30
Selecting from the Tools Menu
31
Selecting from the Advanced Menu
32
Troubleshooting Flowcharts
33
Flowchart 2.1—Initial Troubleshooting
35
Flowchart 2.2—No Power, Part
36
Flowchart 2.3—No Power, Part
37
Flowchart 2.4—No Power, Part
38
Flowchart 2.5—No Power, Part
39
Flowchart 2.6—No Video, Part
40
Flowchart 2.7—No Video, Part
41
Flowchart 2.9—No Operating System (Os) Loading
43
Flowchart 2.13—No os Loading, Diskette Drive
47
3 Software Update and Recovery
55
Software Updates
55
Software Update and Recovery
56
Downloading a Bios Update
57
Installing a Bios Update
58
Recovering the Bios
59
4 Illustrated Parts Catalog
61
Serial Number Location
61
Tablet PC Major Components
62
Miscellaneous Plastics
72
Hardware Kit
72
Miscellaneous Cable Kit
73
Miscellaneous (Not Illustrated)
74
Sequential Part Number Listing
76
Removal and Replacement Preliminaries
81
Tools Required
81
Service Considerations
82
Preventing Damage to Removable Drives
83
Preventing Electrostatic Damage
84
Packaging and Transporting Precautions
85
Workstation Precautions
86
Grounding Equipment and Methods
87
6 Removal and Replacement Procedures
89
Serial Number
90
Disassembly Sequence Chart
91
Preparing the Tablet PC for Disassembly
93
Hard Drive
95
Tablet PC Feet
99
Bluetooth Module
100
External Memory Module
102
TPM Security Card
105
Keyboard Cover
106
Keyboard
109
Fan
113
Heat Sink
114
Processor
117
Internal Memory Module
119
Mini PCI Communications Card
121
Button Board
123
Display Assembly
126
Top Cover
132
Touchpad
136
Speaker
140
Infrared Board
142
System Board
144
Modem Board
147
RTC Battery
149
7 Specifications
151
Universal Serial Bus
164
External Monitor
165
Power Cord Set Requirements
169
