Removal and Replacement Procedures
Maintenance and Service Guide 6–9

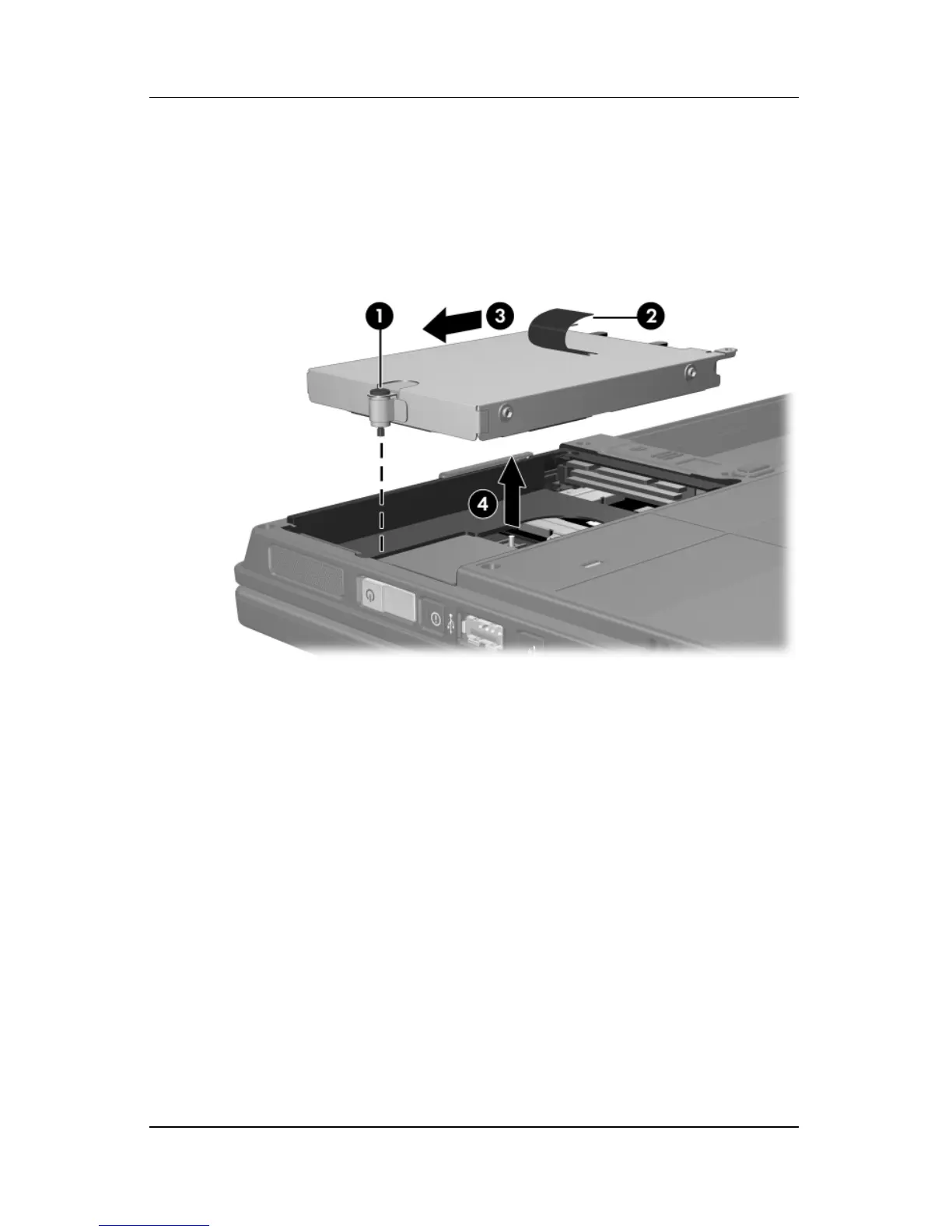

4. Loosen the PM2.5×13.0 hard drive retention screw 1.
5. Grasp the mylar tab 2 on the hard drive and slide the hard
drive to the left 3 to disconnect it from the system board.
6. Remove the hard drive.
Removing the Hard Drive
