5–24 Maintenance and Service Guide
Removal and Replacement Procedures
5.10 Fan
1. Prepare the tablet PC for disassembly (Section 5.3).
2. Remove the keyboard cover (Section 5.8).
3. Release the keyboard (Section 5.9).
4. Disconnect the fan cable 1 from the system board.
5. Remove the three Torx8 T8M2.0×8.0 screws 2 that secure
the fan to the tablet PC.
6. Remove the fan 3.

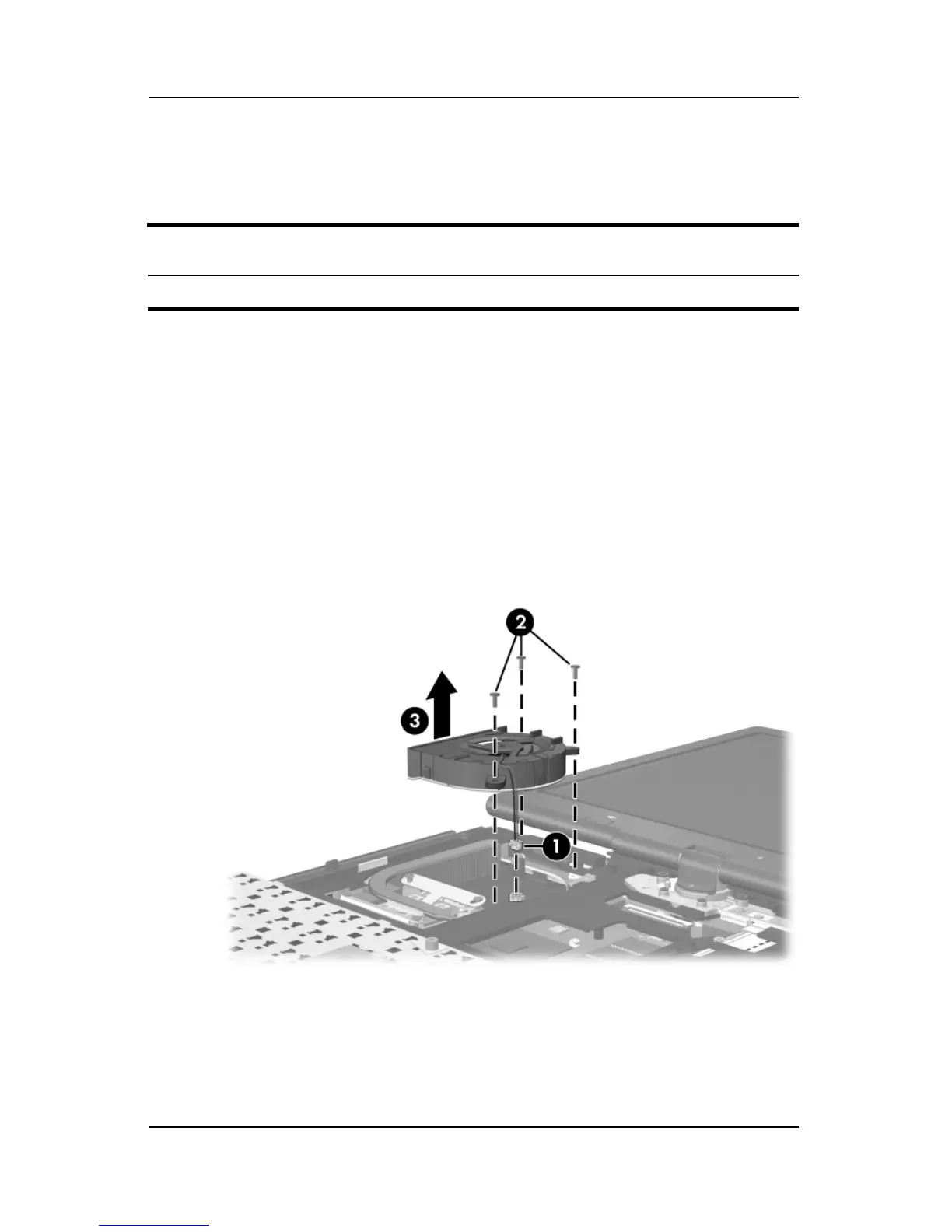

Removing the Fan
Reverse the above procedure to install the fan.
Fan Spare Part Number Information
Fan 419127-001
