5–12 Maintenance and Service Guide
Removal and Replacement Procedures
5.6 Bluetooth Module
1. Prepare the tablet PC for disassembly (Section 5.3).
2. Remove the hard drive cover (Section 5.4).
3. Position the tablet PC with the front toward you.
4. Loosen the two Phillips PM2.0×5.0 screws 1 that secure the
Bluetooth module cover to the tablet PC.
5. Remove the Bluetooth module cover 2.
✎
The Bluetooth cover is included in the Plastics Kit, spare part
number 419157-001.

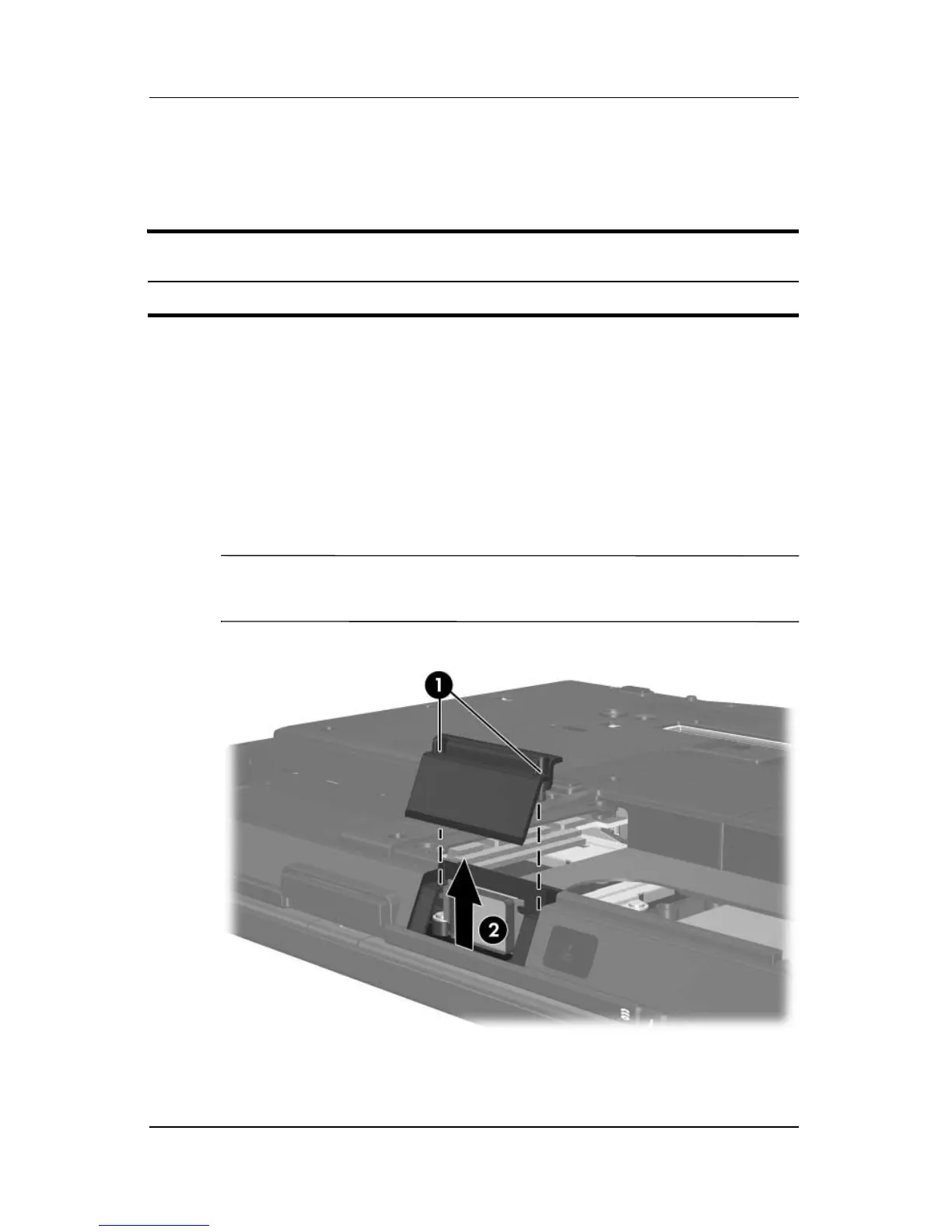

Removing the Bluetooth Module Cover
Bluetooth Module Spare Part Number Information
Bluetooth module (includes Bluetooth module cable) 419117-001
