5–50 Maintenance and Service Guide
Removal and Replacement Procedures

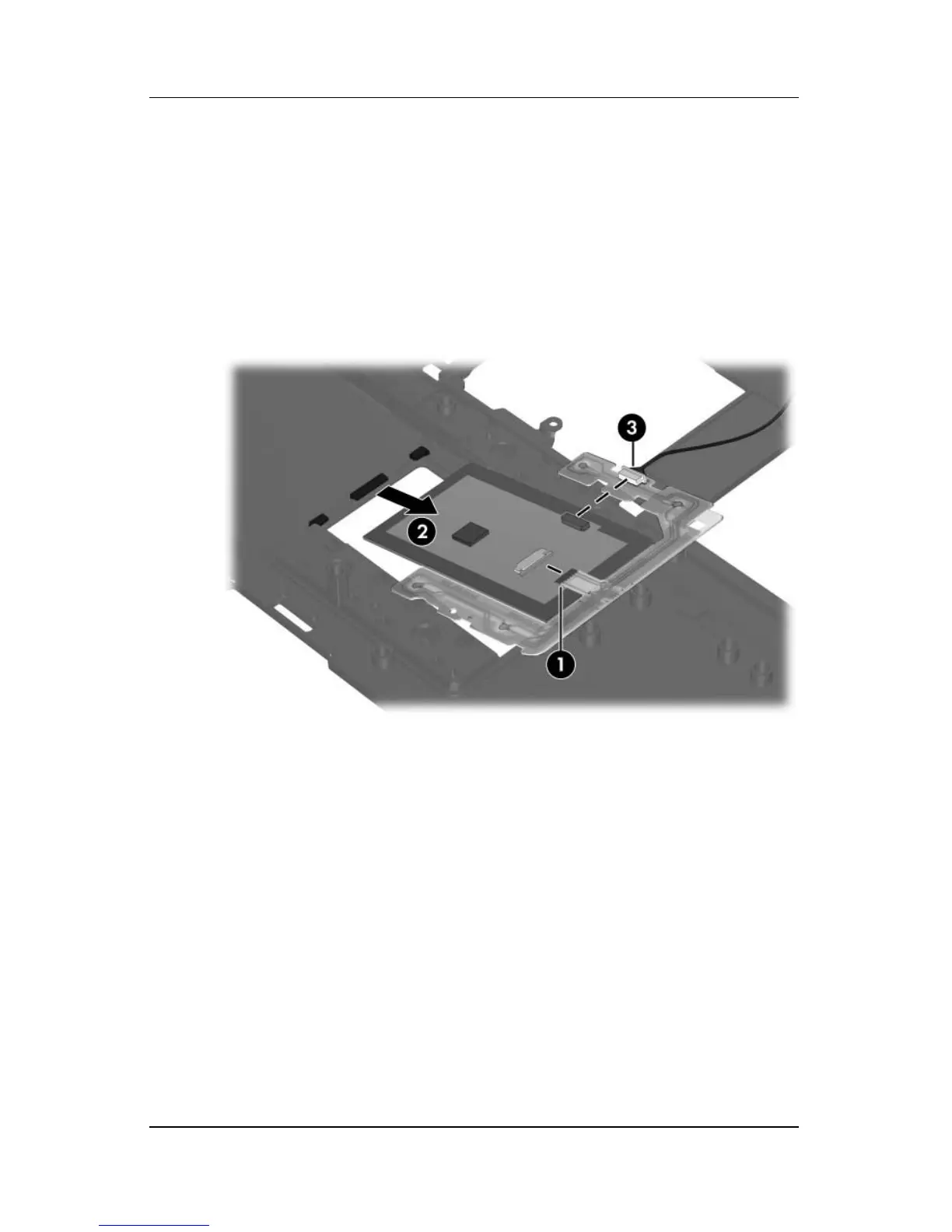

6. Release the ZIF connector to which the TouchPad cable is
attached and disconnect the TouchPad cable 1.
7. Slide the TouchPad 2 to the right and remove it.
8. If it is necessary to replace the TouchPad cable, disconnect
the cable 3 from the TouchPad board.
Removing the TouchPad
Reverse the above procedure to install the TouchPad.
