HP S7500/MV7500/CV7500

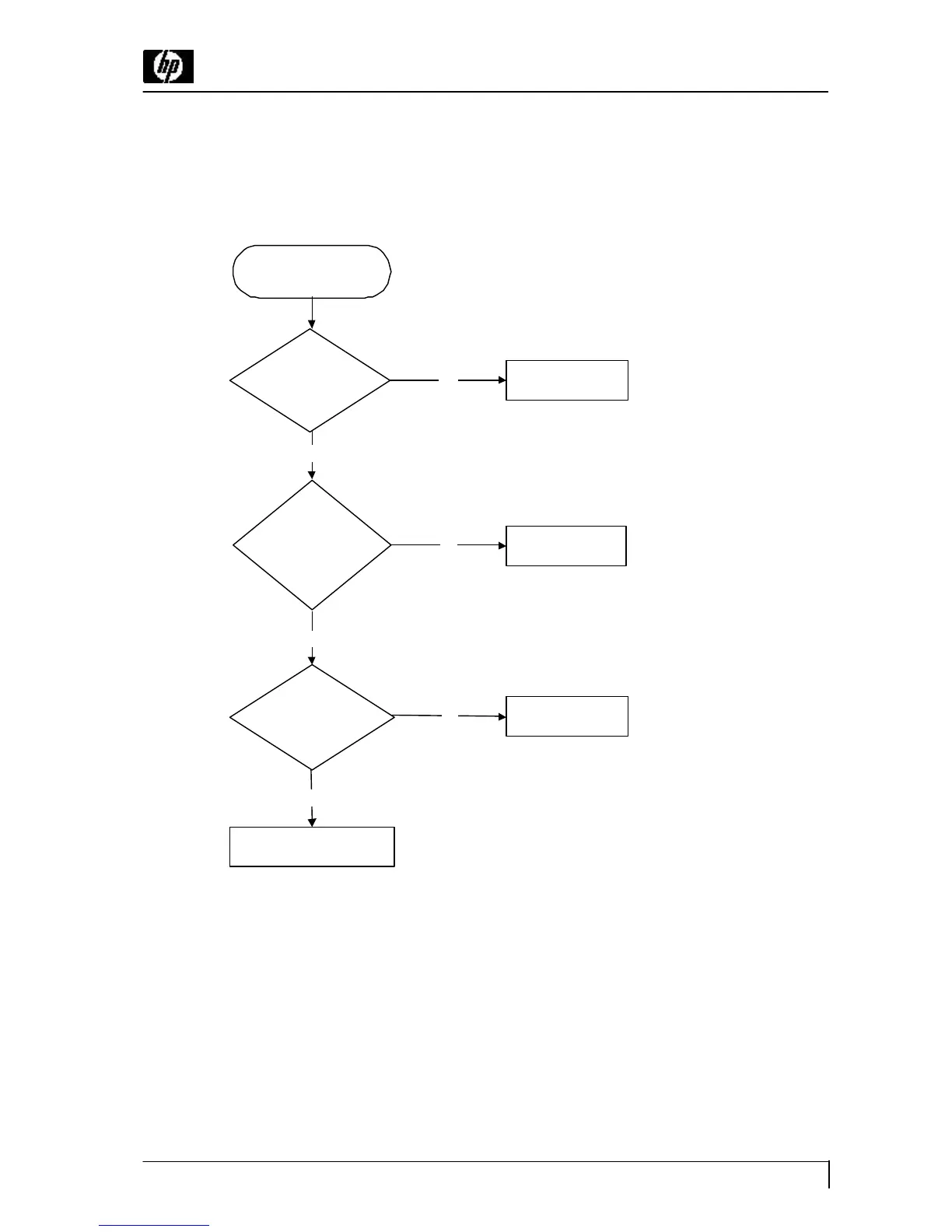

5-2 OSD Abnormal
Put on
I502
Replace them
No
Check I502 pin 9, 4
is 5V and pin 5, 10, 7,
8 missing?
Check R517, L514,
R527, R523, R524
OK?
OSD Abnormal
Yes
No
No
Replace it
Yes
Yes
Check P502
OK?
Replace I502
