English 5
HP 15” Color Monitor User’s Guide
Setting Up Your Monitor

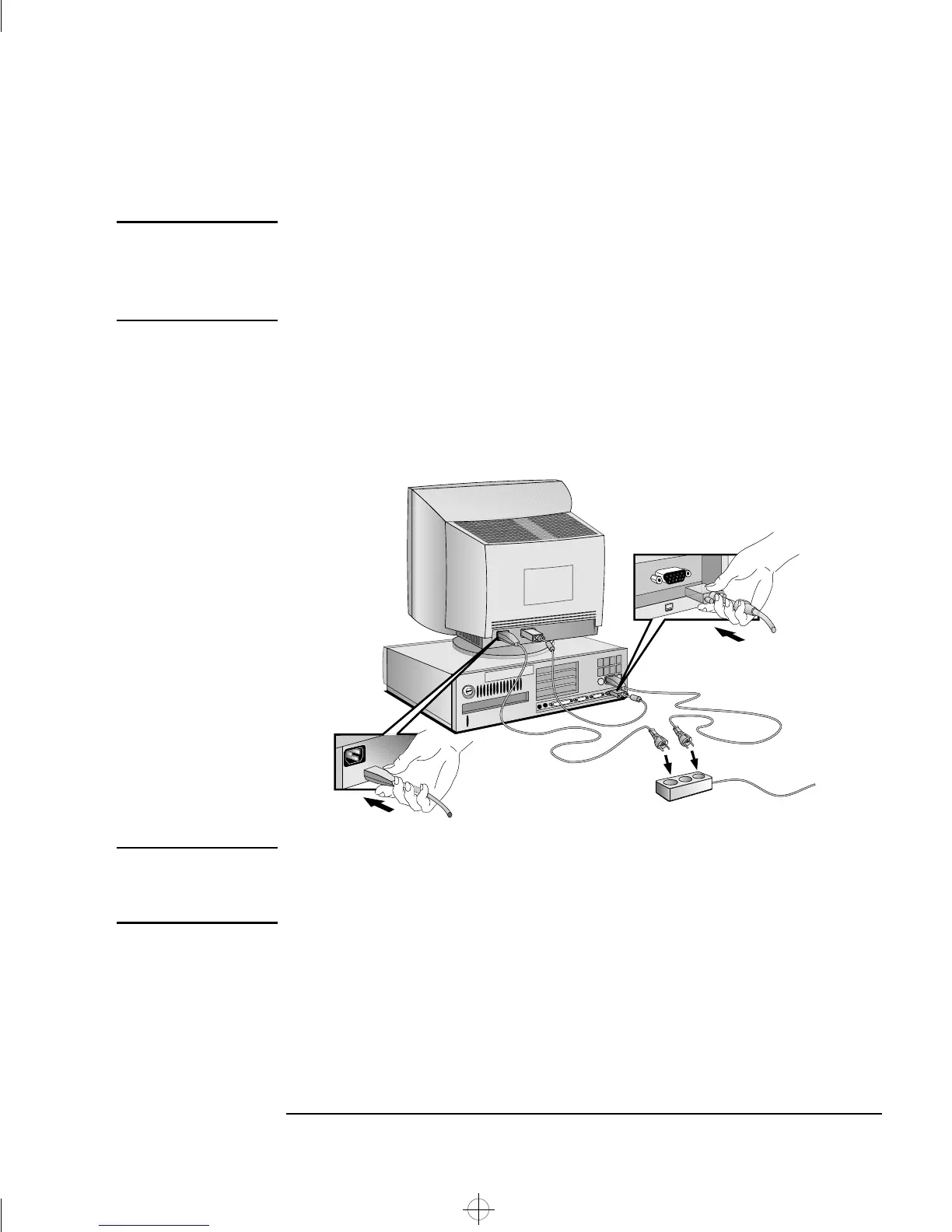

Connecting the Cables
CAUTION Before you connect any cables, or install your HP monitor, refer to the
safety instructions at the beginning of this manual. Refer also to the user
manual which accompanies your PC and video adapter to ensure this
equipment is correctly installed.
1
Make sure that your PC and monitor are switched off.
2
Connect the video cable (it has a 15-pin plug) to the video outlet on
your PC. Tighten the thumbscrews on the plug.
3
Connect the power cord to the monitor.
4
Plug the power cord into a grounded power outlet.
NOTE The location of your PC’s video outlet may be different to the one shown
in the diagram. Refer to the manual that came with your PC, if
necessary.
Video cable
Power cords
1 PC and Monitor OFF
2
3
4
kiska1.bk : kiska-us.fb4 Page 5 Wednesday, April 22, 1998 9:22 PM
