HP DesignJet 130nr - HP DesignJet 130;130 nr Cover Assemblies Diagram

5
Parts and Diagrams
hp designjet 120/120nr and 130/130nr printer service manual

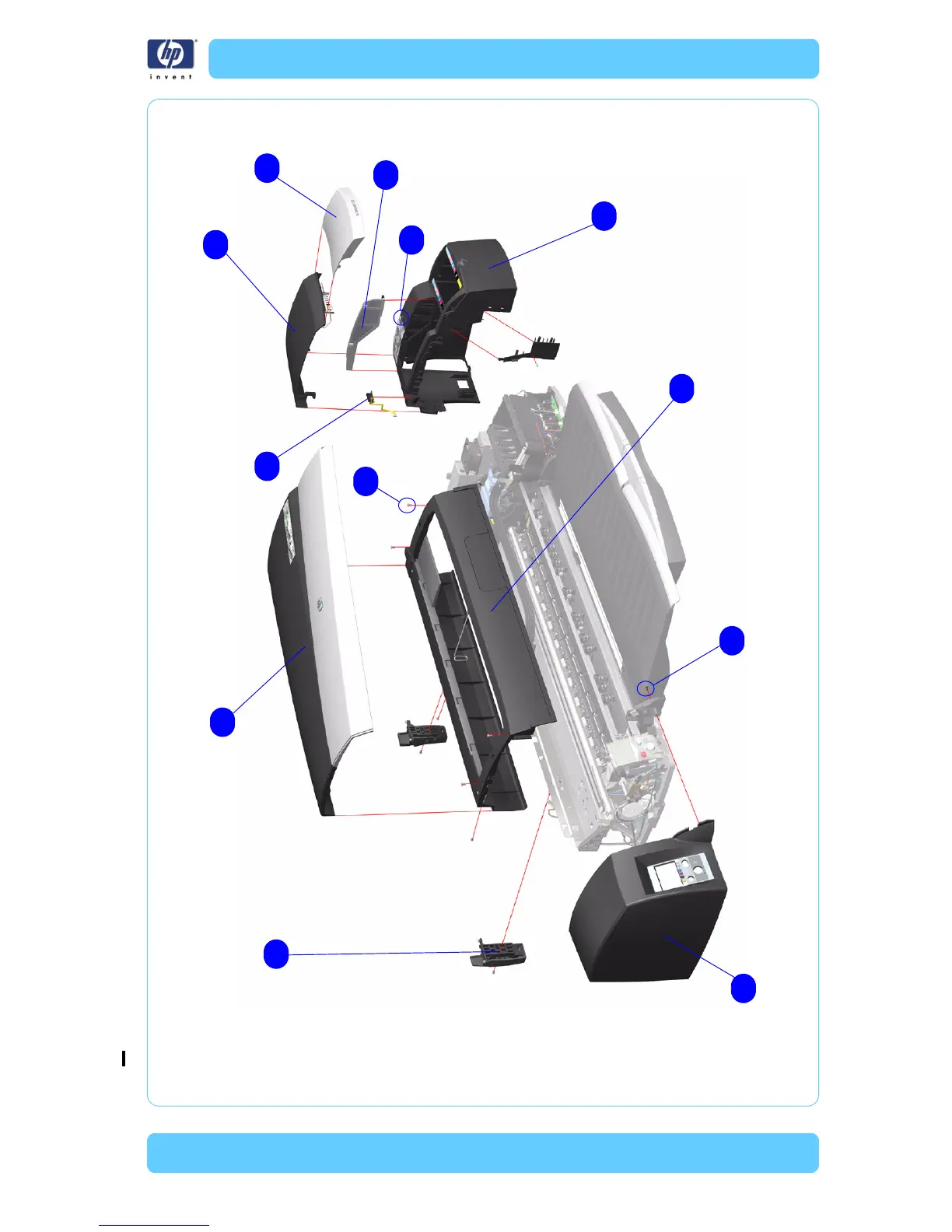

Figure 2: Cover Assemblies (Applicable to DesignJet 130/130nr)
1
11
4
2
7
8 9
3
10
5
6
12
