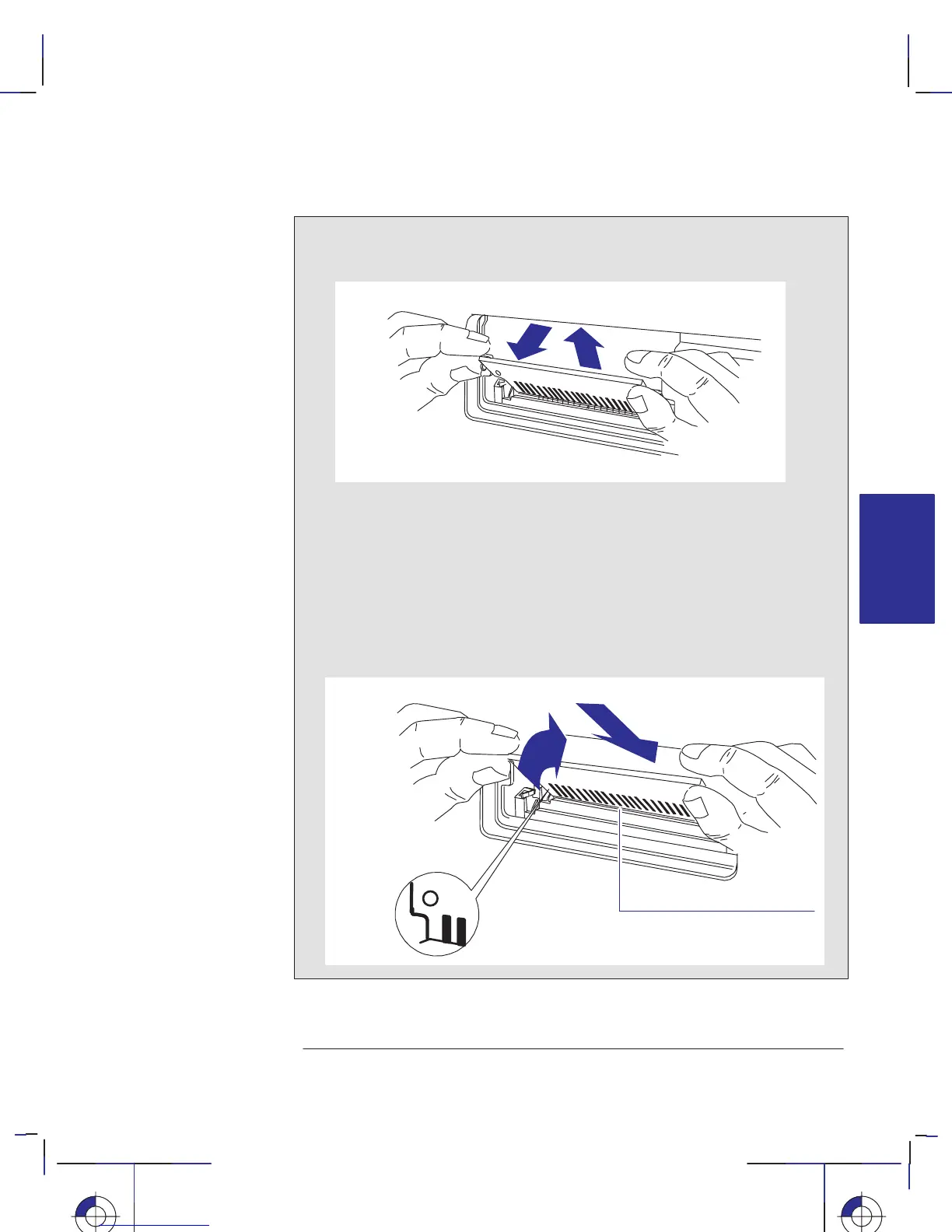

b Holding it only by the edges, carefully pull the top of the module toward you
and lift it out.
1
2
4 Temporarily place the module on a conductive pad, for example the one containing
the new SIMM.
5 Take the new SIMM out of its bag, holding it only by the edges.
6 With the SIMM’s small notch on the left and the metallic edge away from you,
load the SIMM into the slot furthest from you. To do this, first hold the module at
an angle, place the bottom edge in the slot and then push the top away from you
until the module clicks into place.
Slot furthest from you
2
1
7 If you removed a memory module from the slot nearest to you, re-install it in the
same way.
