HP Designjet 4500

6-11
Print Quality
HP Designjet 4500 Printer Series Service Manual
Analyzing Printhead Nozzles
Do not expect perfection, because even if there are only a few missing lines,
the Printer can compensate for this so there is no need to replace the

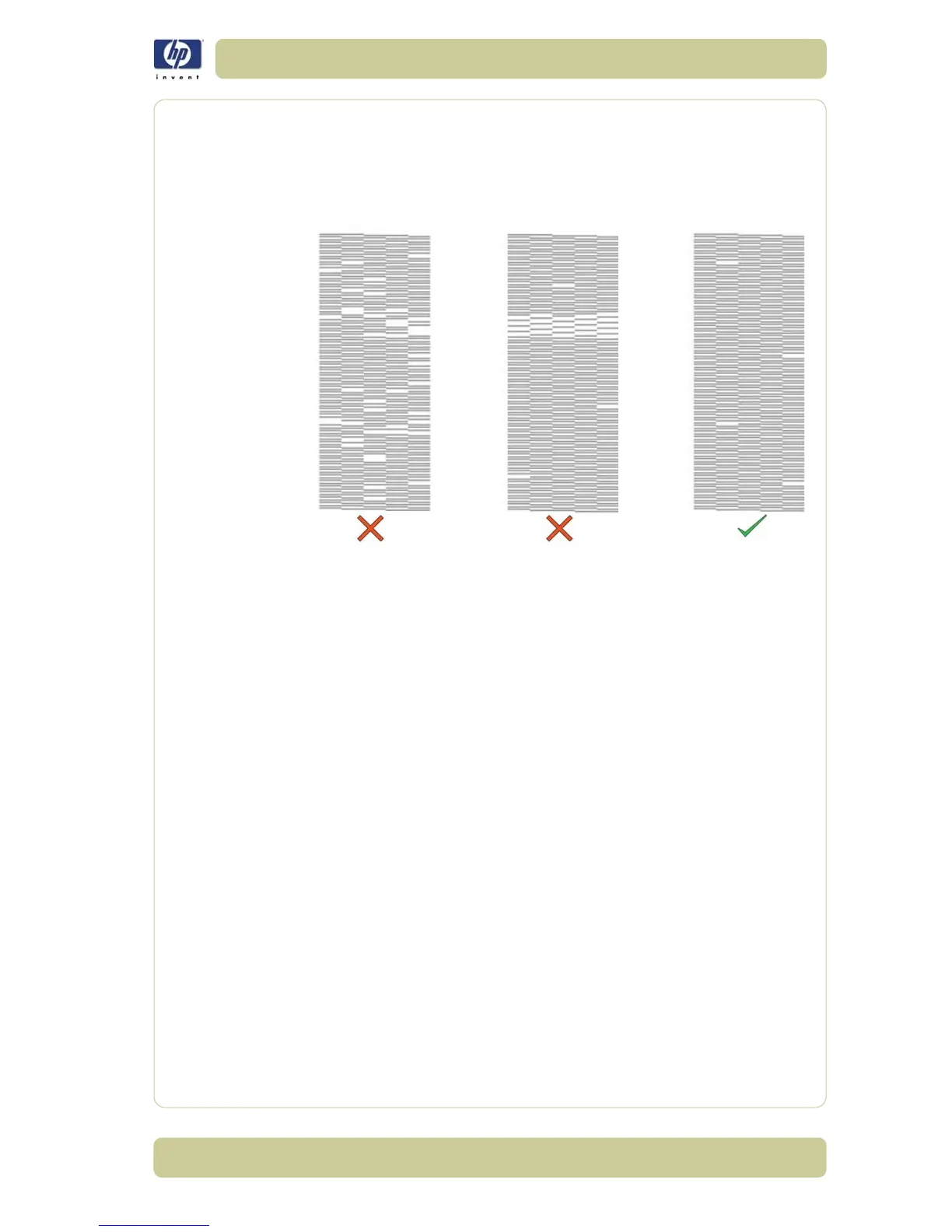

Printhead. Up close, the rectangle printed by a faulty Printhead in part 3 of
the Diagnostic Print may look like some of these examples.
Troubleshooting a Faulty Printhead
1 If part 3 of the Diagnostic Print shows a problem with one Printhead, but
part 2 of the Diagnostic Print shows no problem, then:
 No immediate corrective action is required.
 The printer will compensate for the problem and maintain Image Quality.
2 If both parts 2 and 3 of the Diagnostic Print show a problem, then:
 Recover the printheads using the option through the Front Panel (Ink
Menu/Printheads/Recover Printheads).
 If the problem continues, replace the faulty Printhead.
Faulty - Replace Faulty - Replace Acceptable
