HP Designjet 4500

8-14
Removal and Installation
HP Designjet 4500 Printer Series Service Manual

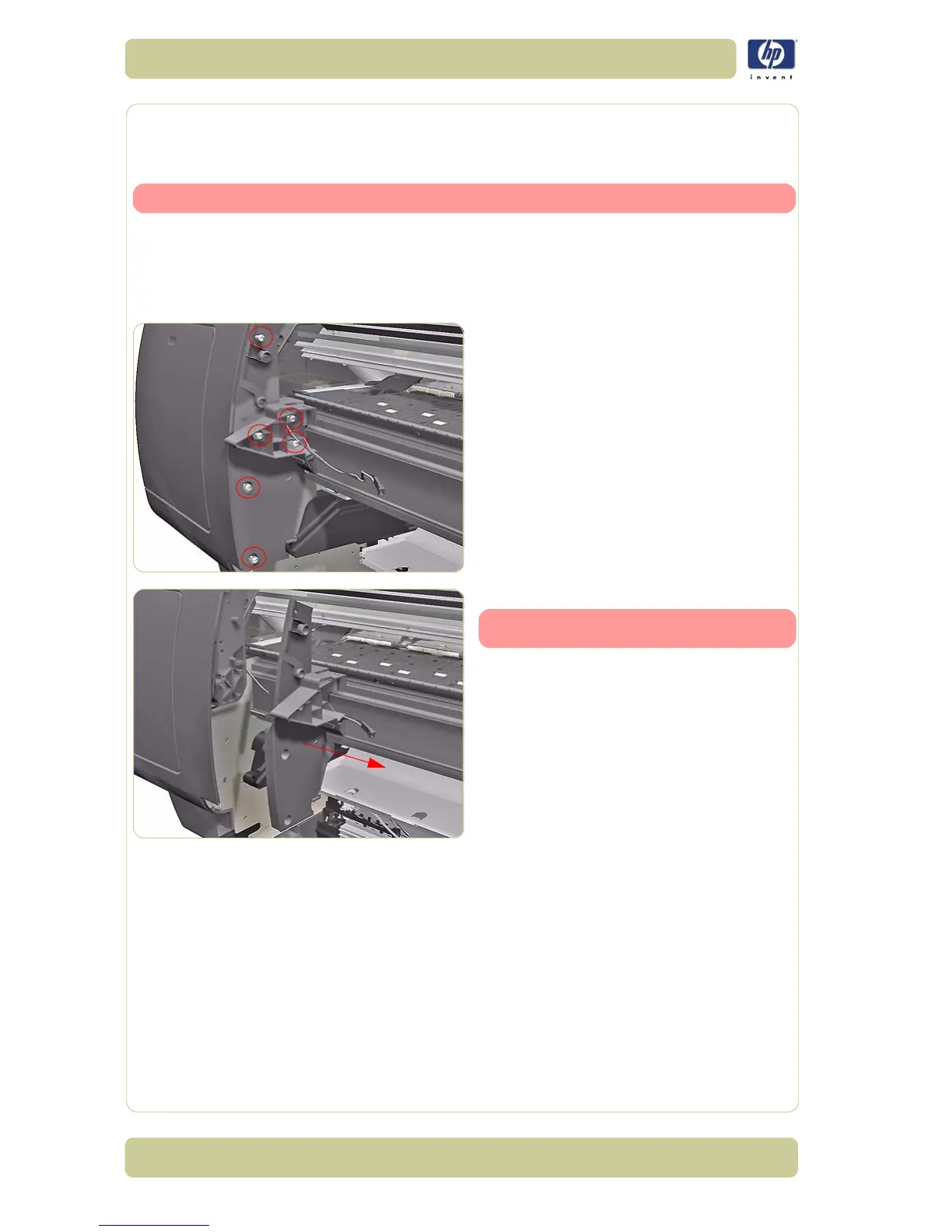

Left Trim
Removal
Switch off the product and remove the power cable.
1. Remove the Output Platen
⇒ Page 8-104 .
2. Remove the Roll 1 Drawer
⇒ Page 8-142 .
3. Remove Roll 1 Module (Front Path)
⇒ Page
8-151
.
4. Remove 6 T15 screws (Type G) that
secure the Left Trim to the printer.
5. Slide the Left Trim to the right.
Make sure you do not damage the
cable.
