8-18
Removal and Installation
HP Designjet 4500 Printer Series Service Manual
Top Cover
Removal
Switch off the product and remove the power cable.
1. Remove the Right Cover
⇒
Page 8-8
.
2. Remove the Left Cover
⇒
Page 8-11
.

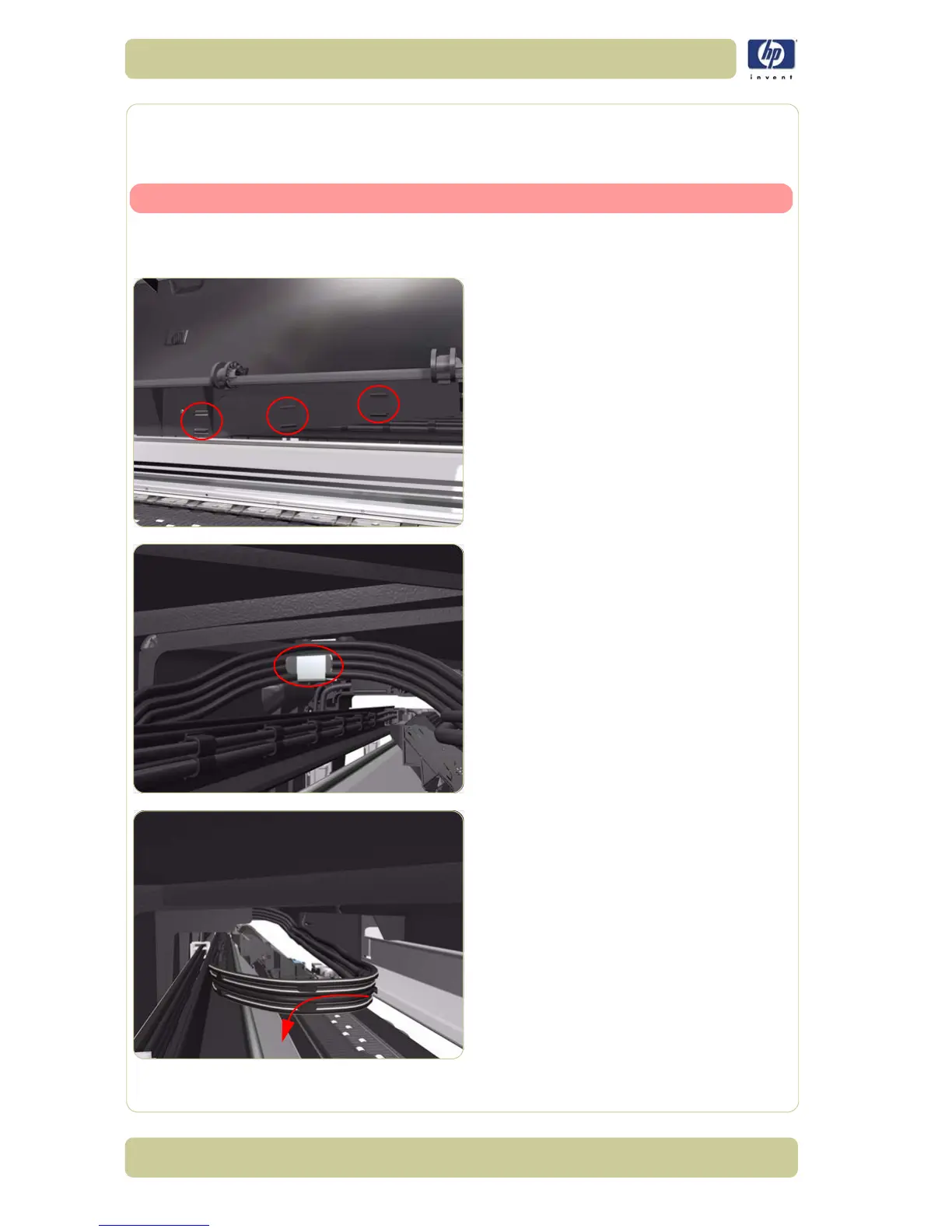

3. Release the three clips securing the Ink
Supply Tubes and the Trailing Cable to the
Top Cover.
4. Release the Ink Supply Tubes and Trailing
Cable from the clip underneath the Top
Cover.
5. Remove the Ink Supply Tubes and Trailing
Cable from within the Top Cover and lay
them on the Print Platen.
To Next Page
