Removal and Installation
HP Designjet 4500 Printer Series Service Manual
Right Connector Cover
Removal
Switch off the product and remove the power cable.
1. Remove the Rear Door
⇒
Page 8-23
.

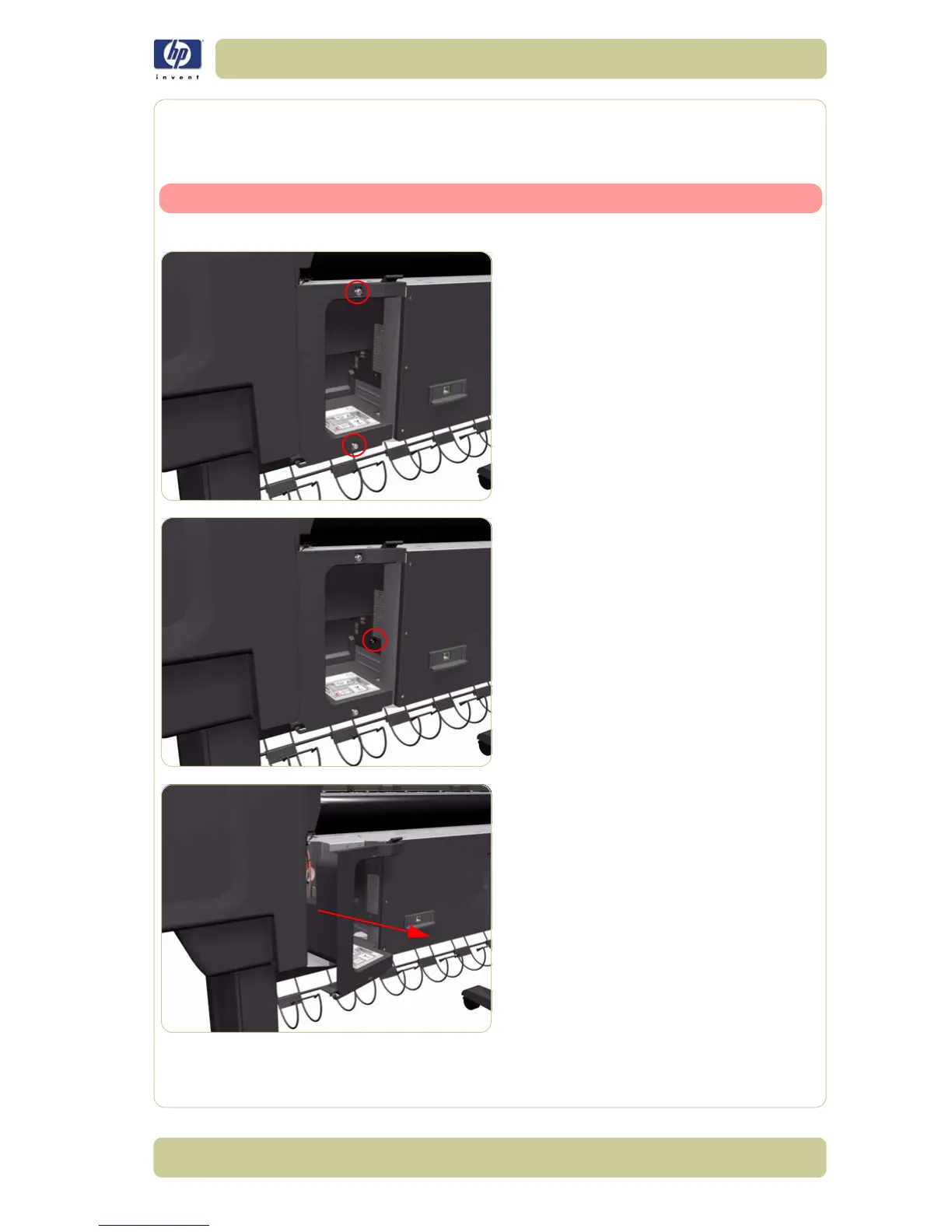

2. Remove two T-20 screws (Type B) from the
Right Connector Cover.
3. Release the Right Connector Cover by
pulling gently on a securing pin located
inside the cover.
4. Remove the Right Connector Cover from
the Printer.
