Removal and Installation
HP Designjet 4500 Printer Series Service Manual
Service Station
Removal
Switch off the product and remove the power cable.
1. Remove the Right Cover
⇒
Page 8-8
.
2. Remove the Rear Door
⇒
Page 8-23.
3. Remove the Right Connector Cover
⇒
Page
8-25.

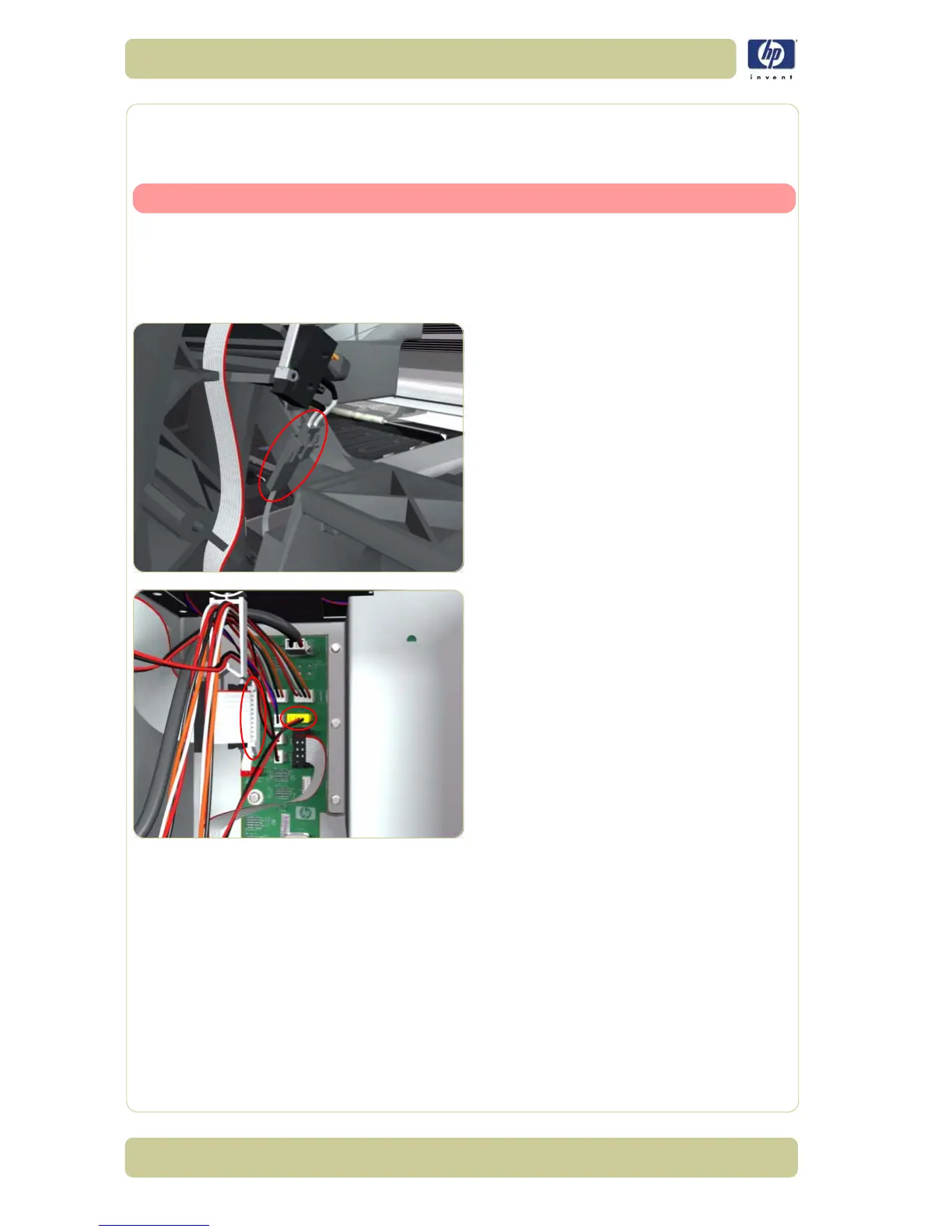

4. Disconnect the cable from the Printhead
Cleaner Door Switch.
5. Disconnect the Service Station and Aerosol
Fan Cables from the Interconnect PCA.
