HP Designjet 4500

8-45
Removal and Installation
HP Designjet 4500 Printer Series Service Manual

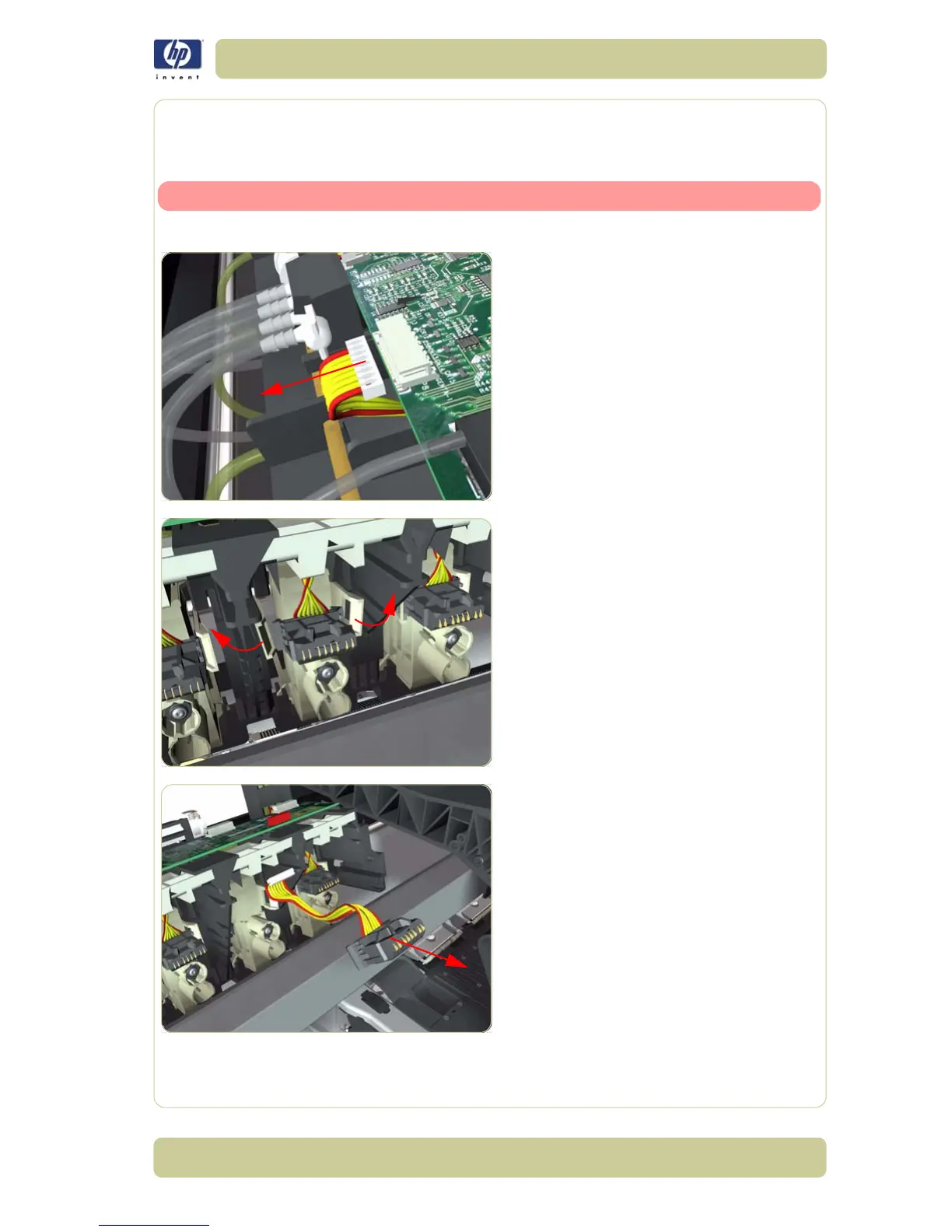

ISS to Cartridge Cables
Removal
Switch off the product and remove the power cable.
1. Remove the Left Cover
⇒ Page 8-6 .
2. Disconnect the ISS to Cartridge Cable from
the ISS PCA.
3. Release the clips securing the ISS to
Cartridge Cable.
4. Remove the ISS to Cartridge Cable from
the Printer.
