8-65
Removal and Installation
HP Designjet 4500 Printer Series Service Manual
Belt Assembly
Removal
Switch off the product and remove the power cable.
1. Remove the Right Cover
⇒
Page 8-8
.
2. Remove the Left Cover
⇒
Page 8-11.
3. Remove the Top Cover
⇒
Page 8-18
.
4. Remove the Encoder Strip
⇒
Page 8-52
.
5. Remove the Carriage Assembly
⇒
Page 8-
60
.

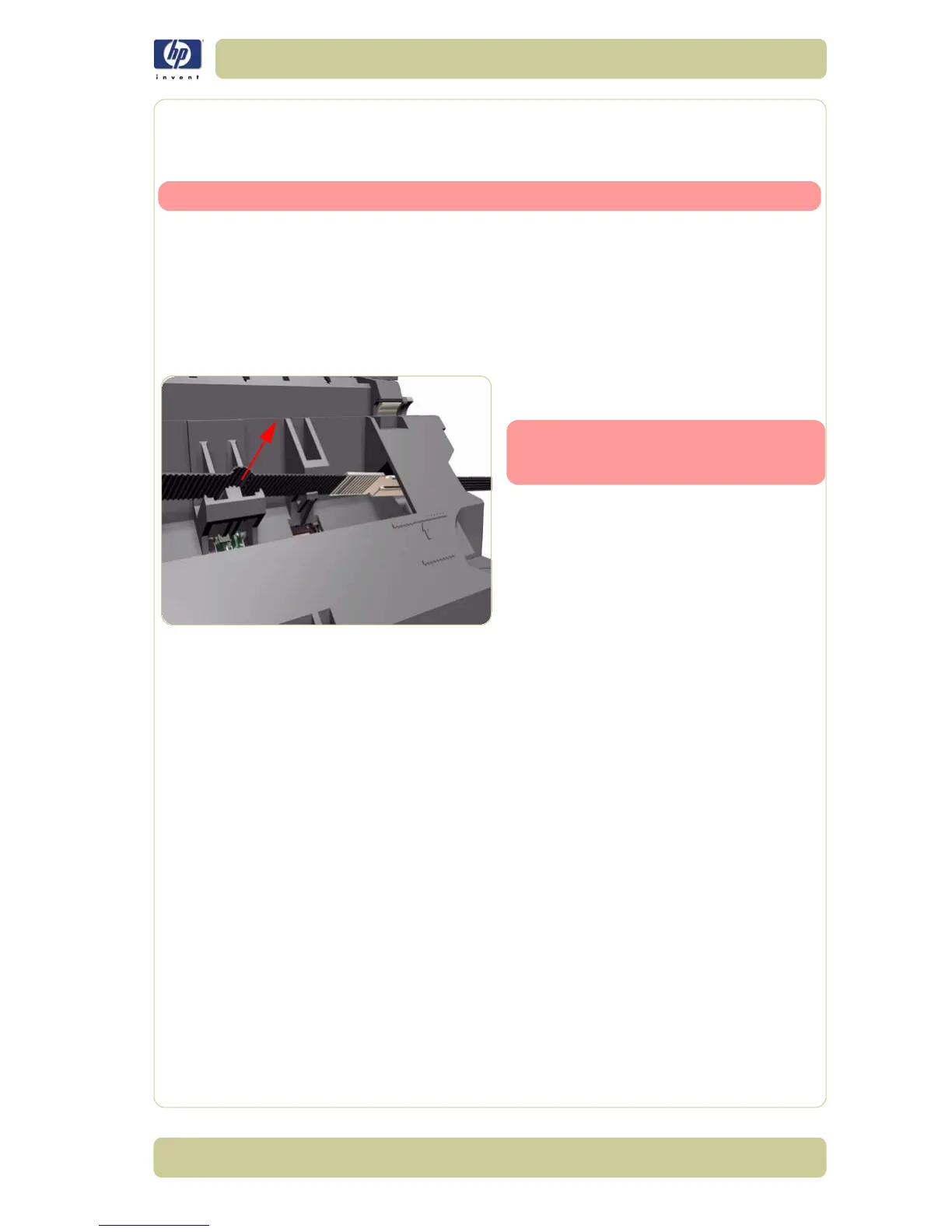

6. Release the Belt from the bottom of the
Carriage Assembly.
After installing the NEW Belt
Assembly, make sure you perform
the following Service Utility:
Reset life counter scan cycles belt
⇒
Chapter 4.
To Next Page
