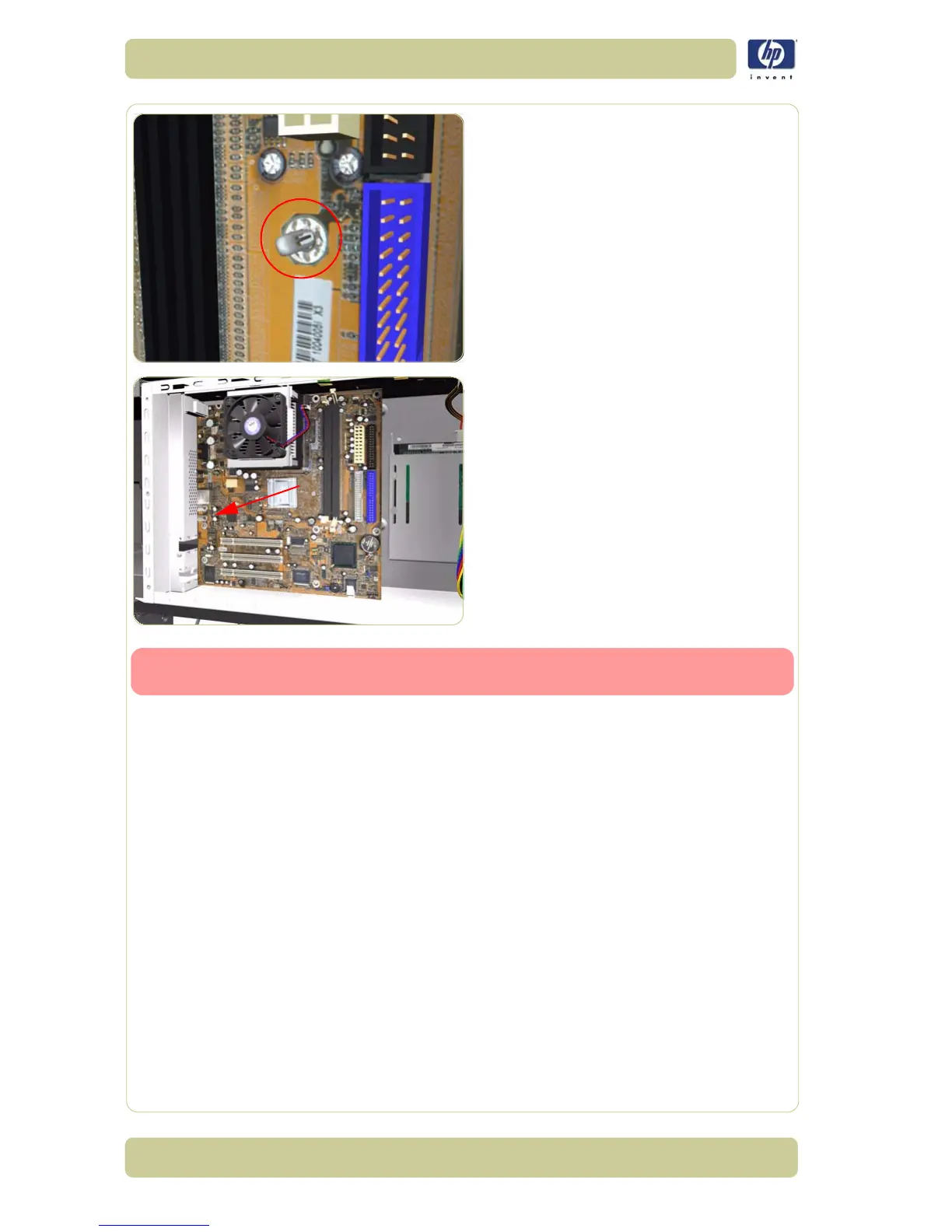

6. Release the plastic locating pin that secures
the Main PCA Formatter.
7. Remove the Main PCA Formatter from the
Printer.
When installing the Main PCA Formatter, make sure that you first locate it on
the plastic locating pin and then install the screws.
