HP Designjet 4500

8-107
Removal and Installation
HP Designjet 4500 Printer Series Service Manual
Center Platen
Removal
Switch off the product and remove the power cable.
1. Remove the Right Cover
⇒ Page 8-8 .
2. Remove the Left Cover
⇒ Page 8-11.
3. Remove the Top Cover ⇒ Page 8-18.
4. Remove the Service Station ⇒ Page 8-30.
5. Remove the Middle Left Spittoons ⇒ Page
8-51.

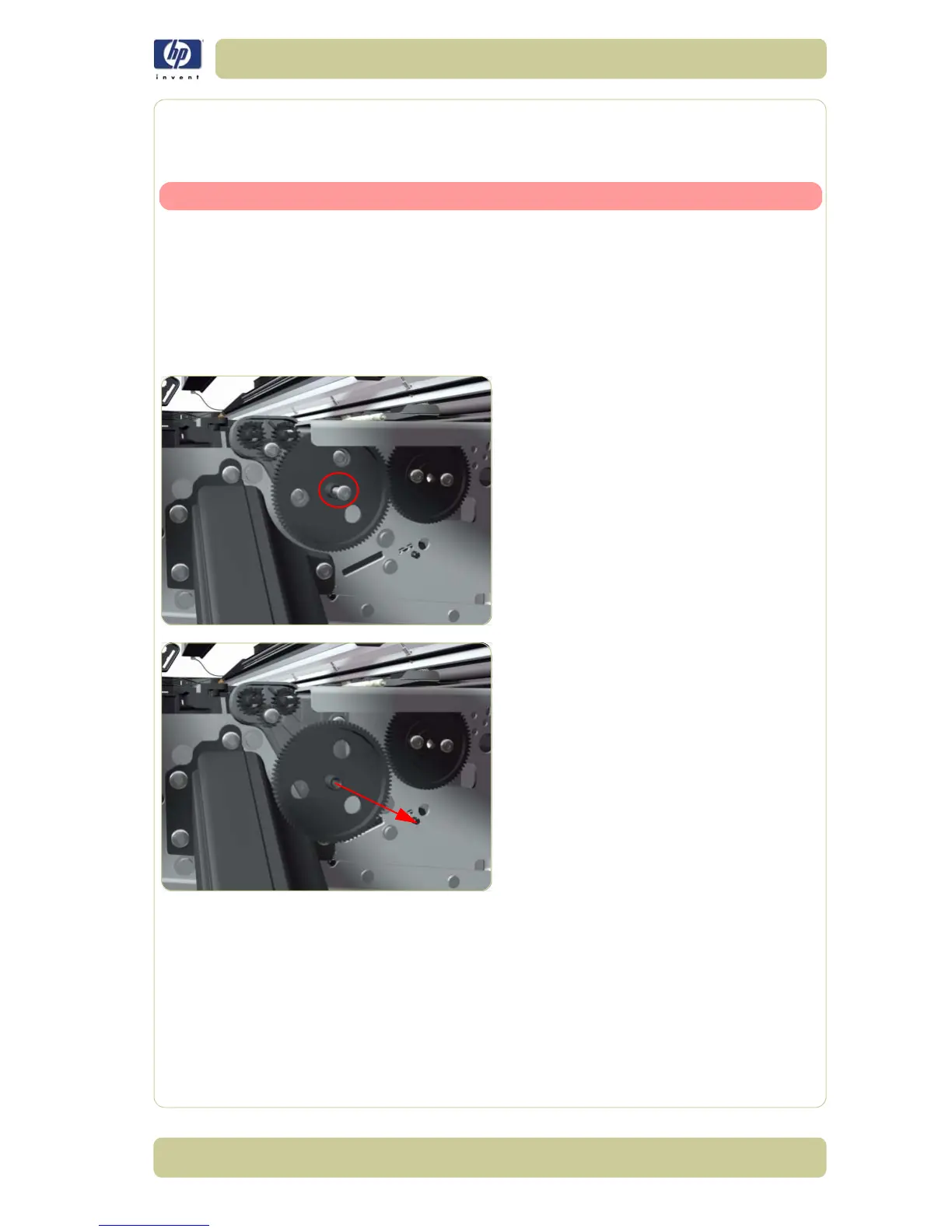

6. Remove one T-15 screw (Type P) that
secures the Center Platen Gear.
7. Remove the Center Platen Gear from the
Printer.
