HP Designjet 4500 - Page 409

8-109
Removal and Installation
HP Designjet 4500 Printer Series Service Manual

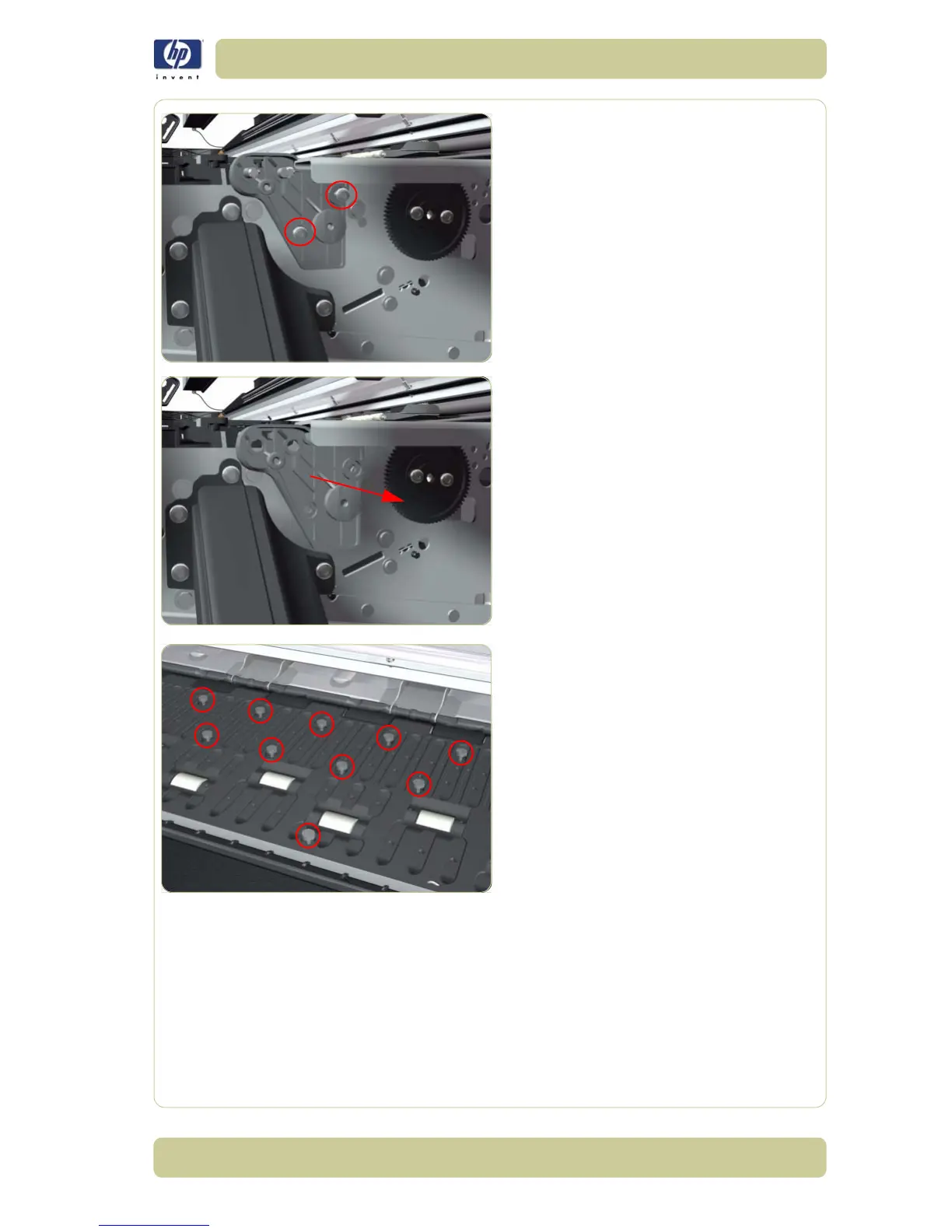

11. Remove two T-20 screws (Type Q) that
secure the Gear Bracket.
12. Remove the Gear Bracket from the Printer.
13. Remove 79 T-10 screws (Type C) that
secure the Center Platen.
