Removal and Installation
HP Designjet 4500 Printer Series Service Manual

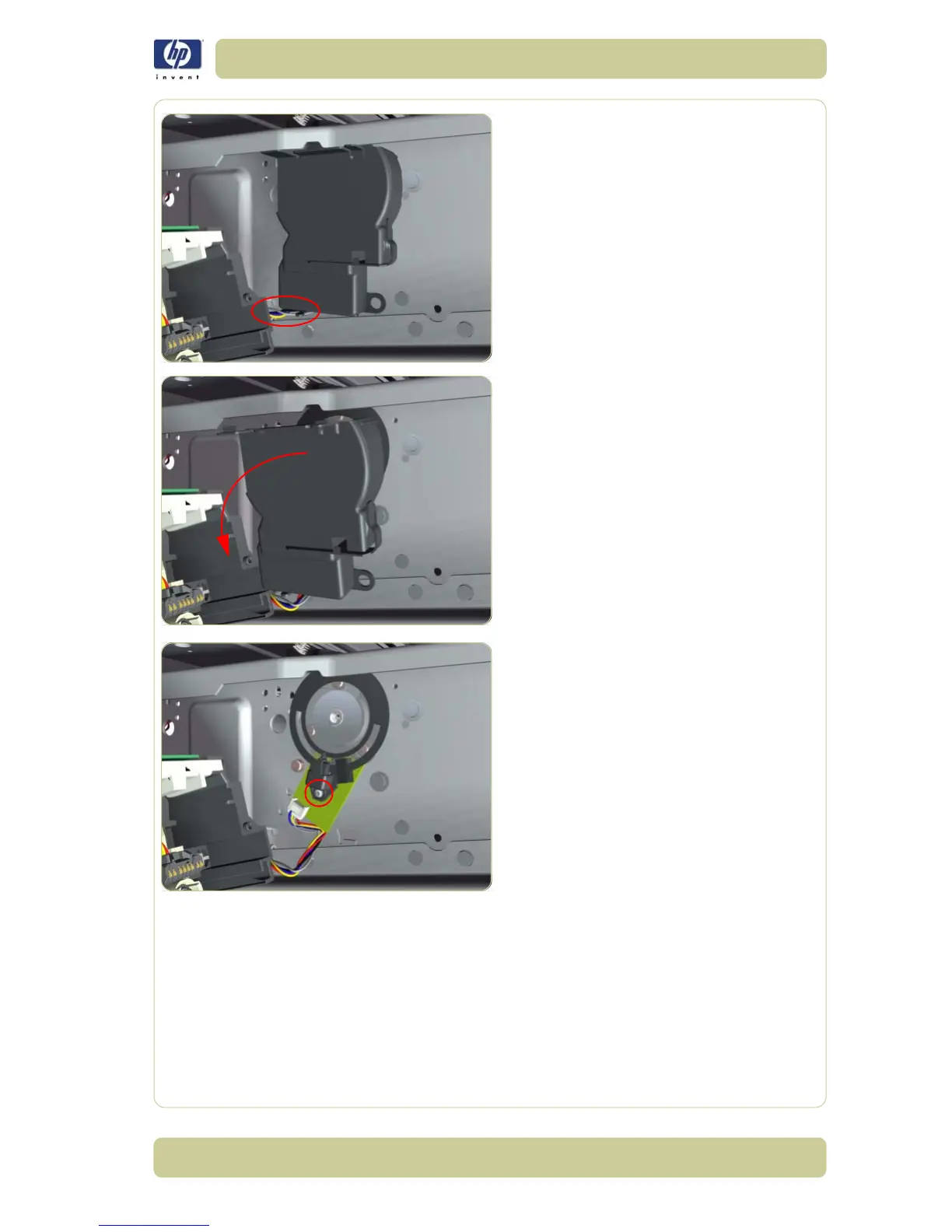

7. Release the Encoder Sensor cable from the
clip located on the Encoder Disc Cover.
8. Unclip the Encoder Disc Cover and remove
from the Printer.
9. Remove one T-8 screw (Type D) that
secures the Encoder Sensor to the Chassis.
