8-123
Removal and Installation
HP Designjet 4500 Printer Series Service Manual

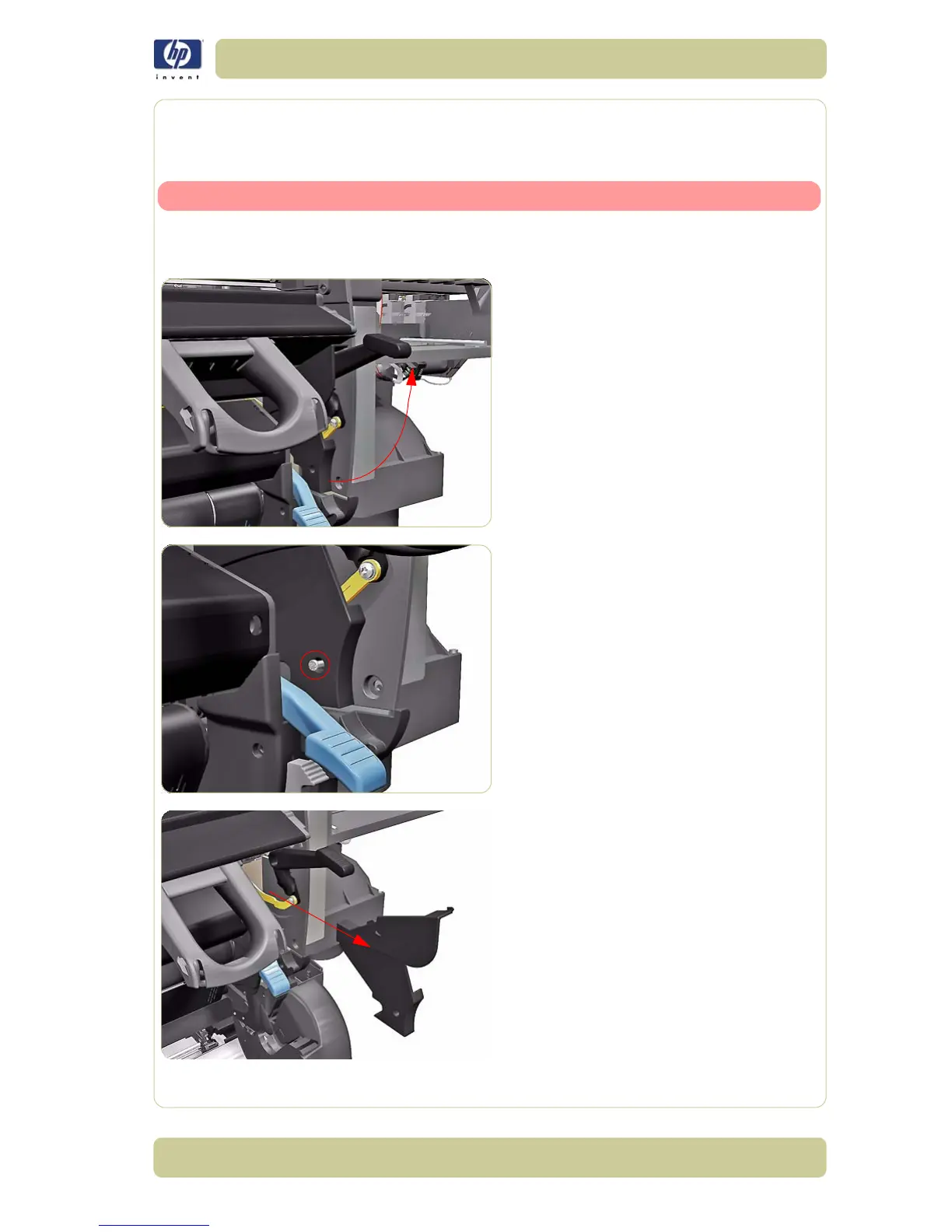

Drive Pinch Lever Assembly
Removal
Switch off the product and remove the power cable.
1. Remove the Right Cover
⇒
Page 8-8
.
2. Remove the Rear Door
⇒
Page 8-23.
3. Move the Drive Pinch Lever Assembly to the
up position.
4. Remove one T-15 screw (Type G) that
secures a bezel over the top of Drive Pinch
Lever.
5. Remove the Drive Pinch Lever Bezel.
To Next Page
