HP Designjet 4500

8-126
Removal and Installation
HP Designjet 4500 Printer Series Service Manual
Drive Pinch Lever Sensor
Removal
Switch off the product and remove the power cable.
1. Remove the Right Cover
⇒ Page 8-8 .
2. Remove the Rear Door
⇒ Page 8-23.
3. Remove the Right Connector Cover ⇒ Page
8-25.
4. Remove the Service Station ⇒ Page 8-30.
5. Remove the Output Platen
⇒ Page 8-104 .
6. Remove the Drive Pinch Lever Assembly
⇒
Page 8-123.

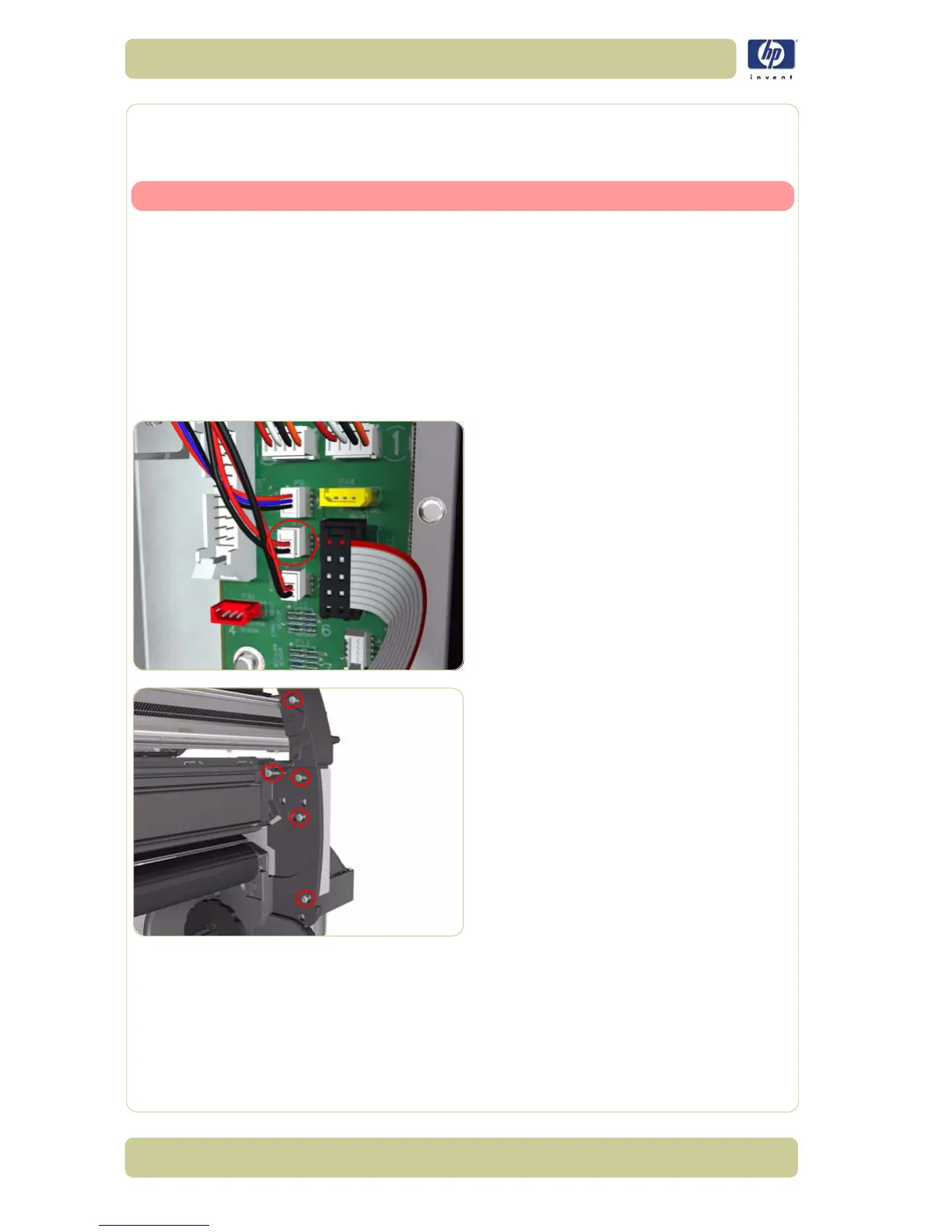

7. Disconnect the Media Lever Sensor cable
from the Interconnect PCA.
8. Remove five T-15 screws (Type B) that
secure the Right Trim.
