HP Designjet 4500

8-138
Removal and Installation
HP Designjet 4500 Printer Series Service Manual
Roll 1 Right Drawer Cover
Removal
Switch off the product and remove the power cable.

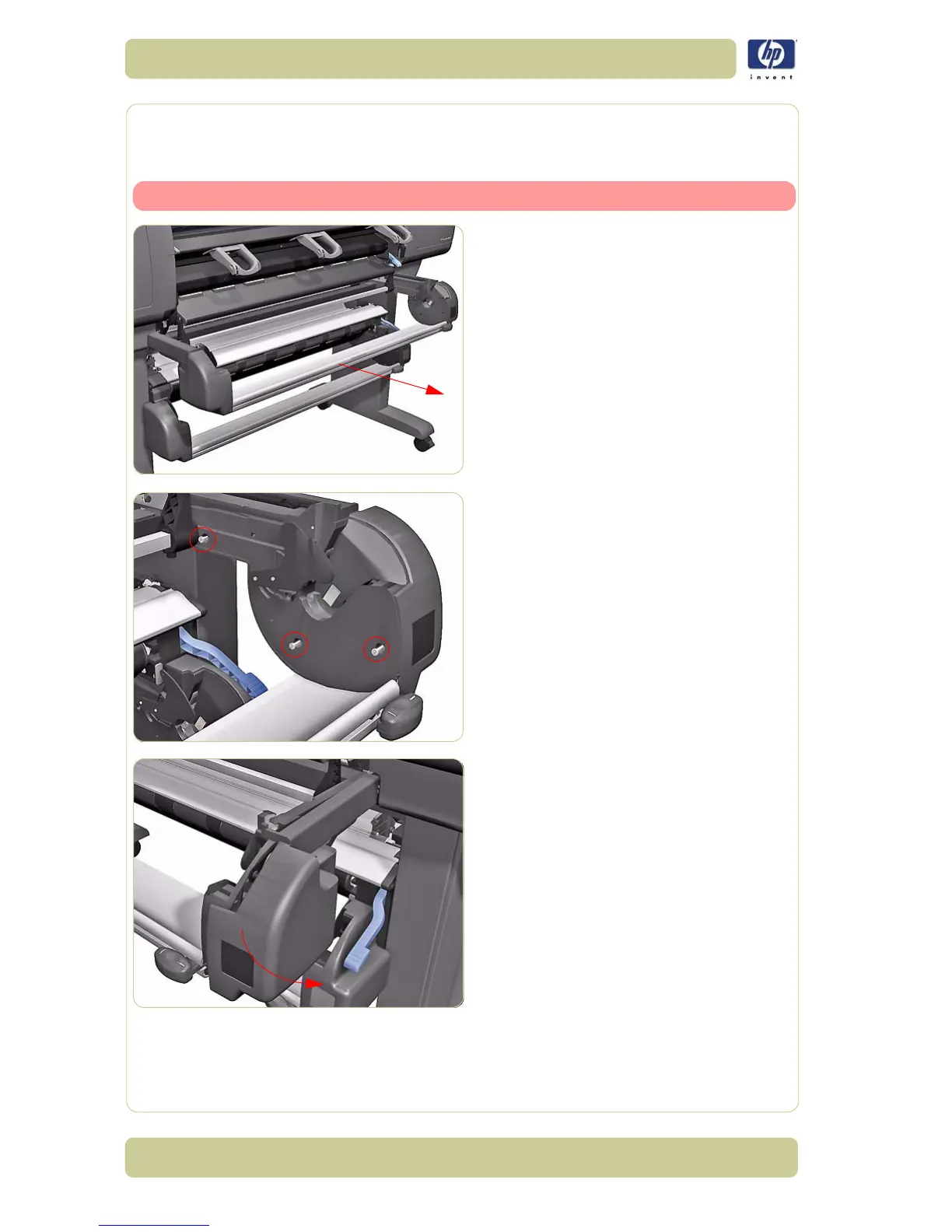

1. Pull out Roll 1 Drawer as far as it will go.
2. Remove three T15 screws (Type G) that
secure the Right Roll 1 Cover.
3. Remove the front part of the Right Roll 1
Cover from the Spindle Support.
