Removal and Installation
HP Designjet 4500 Printer Series Service Manual
Roll 1 Drawer
Removal
Switch off the product and remove the power cable.
1. Remove the Media Spindle
2. Remove the Roll 1 Right Drawer Cover
⇒
Page 8-138
3. Remove the Roll 1 Left Drawer Cover
⇒
Page 8-140

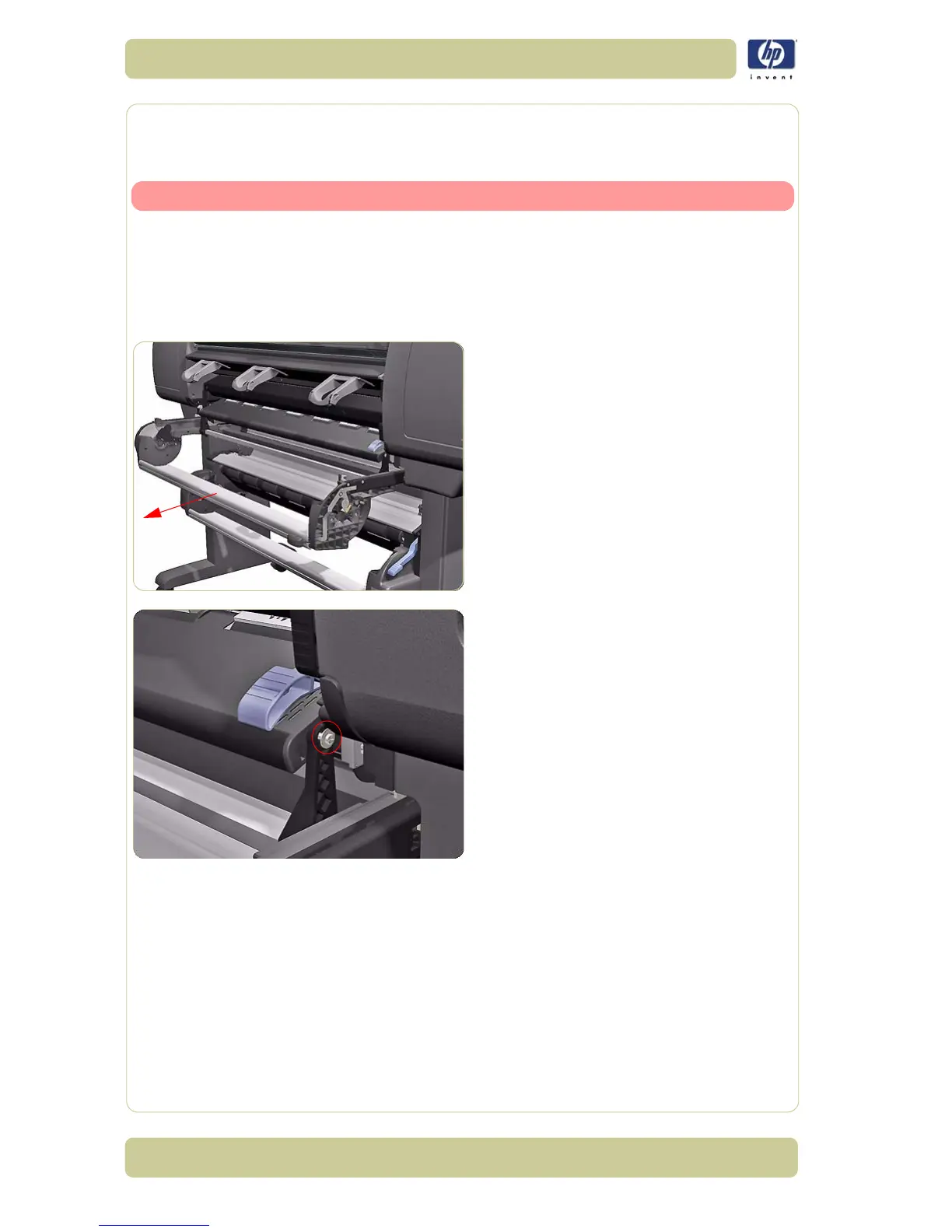

4. Pull out Roll 1 Drawer as far as it will go.
5. Remove one T15 screw (Type G) and
washer that secures the Roll 1 Drawer Bar
from the right side.
