HP Designjet 4500

8-147
Removal and Installation
HP Designjet 4500 Printer Series Service Manual
Roll 1 Drawer Bar
Removal
Switch off the product and remove the power cable.
1. Remove the Roll 1 Right Drawer Cover
⇒
Page 8-138
2. Remove the Roll 1 Left Drawer Cover
⇒
Page 8-140
3. Remove the Roll 1 Drawer
⇒ Page 8-142

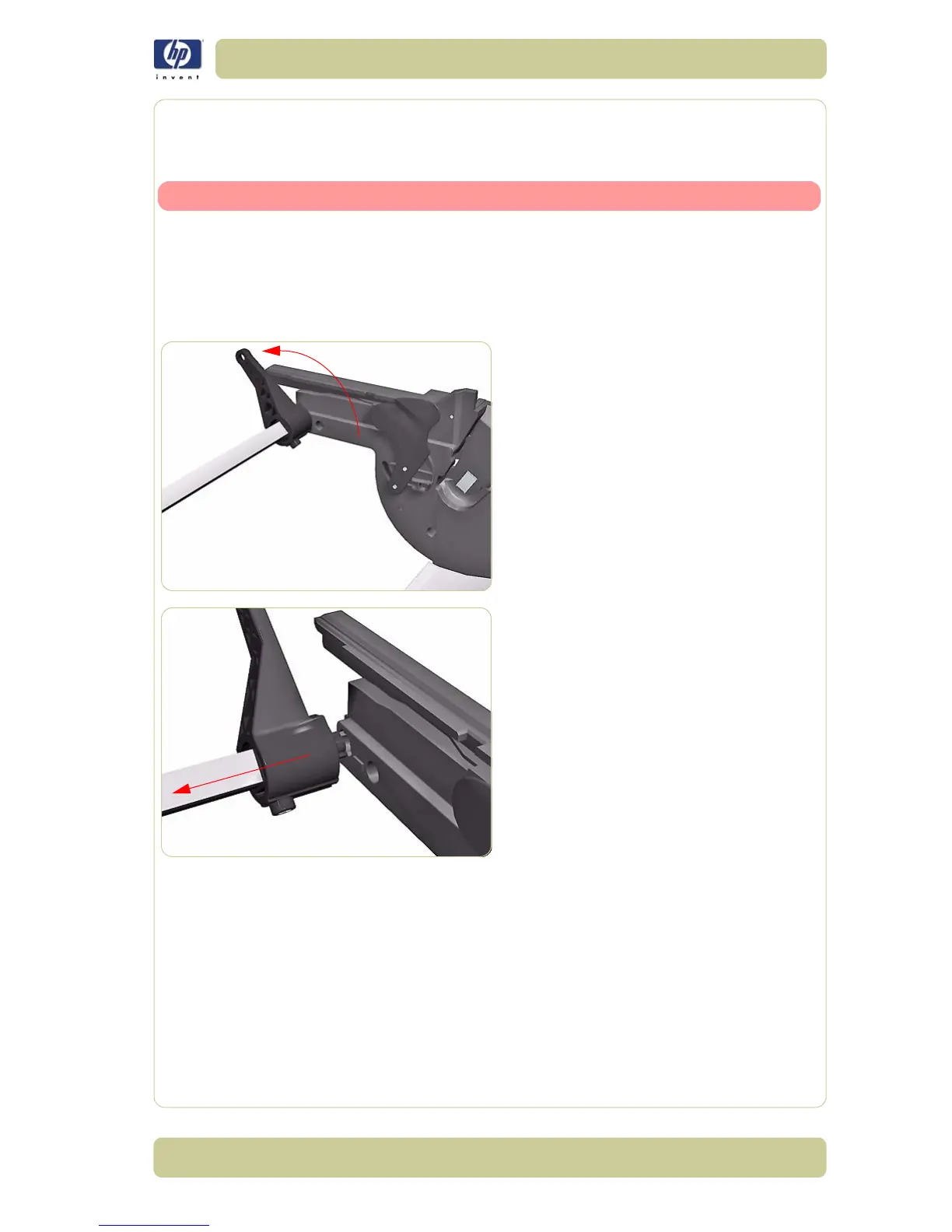

4. Turn the Roll 1 Drawer Bar into the position
shown.
5. Remove the right side of Roll 1 Drawer Bar.
