Removal and Installation
HP Designjet 4500 Printer Series Service Manual

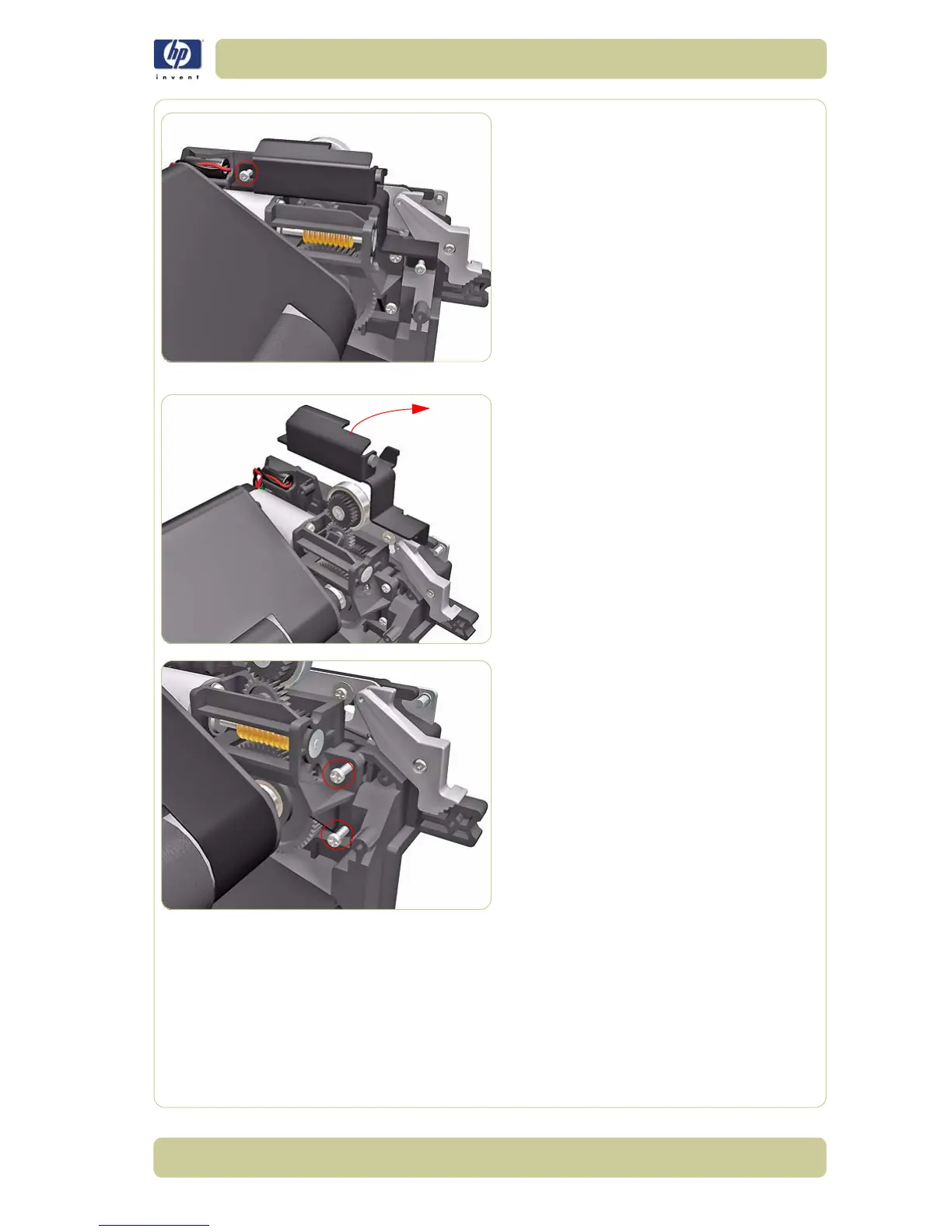

5. Remove one T15 screw (Type G) that
secures the Media Feed Motor retaining
bracket.
6. Remove the Media Feed Motor retaining
bracket.
7. Remove two T15 screws (Type F) that
secure the Roll 1 Media Feed Motor.
