8-164
Removal and Installation
HP Designjet 4500 Printer Series Service Manual

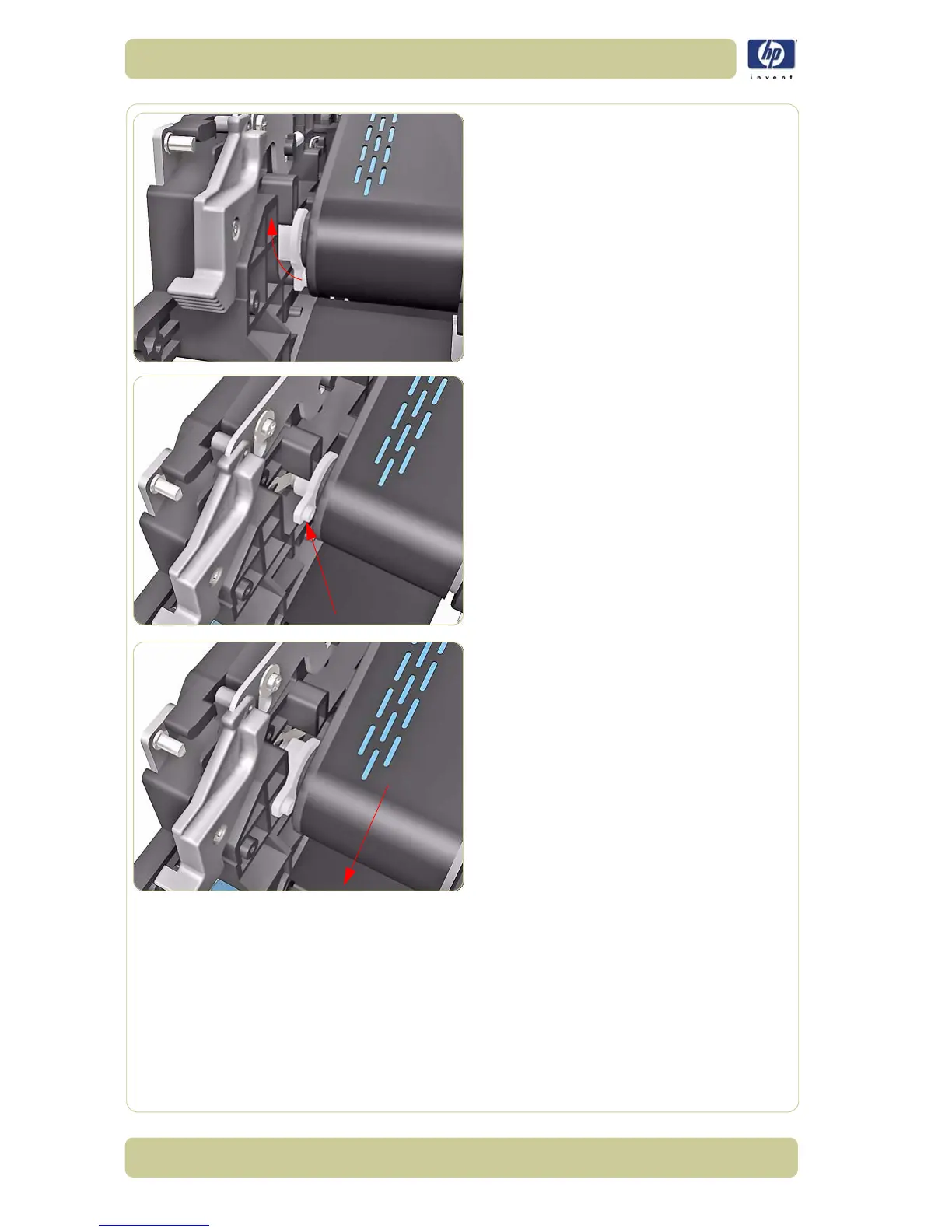

9. Rotate the white plastic bushing on the
right side of the Roll 1 Feed Roller.
10. Rotate the white plastic bushing to the
position shown.
11. Pull the Roll 1 Feeder Plate forwards.
