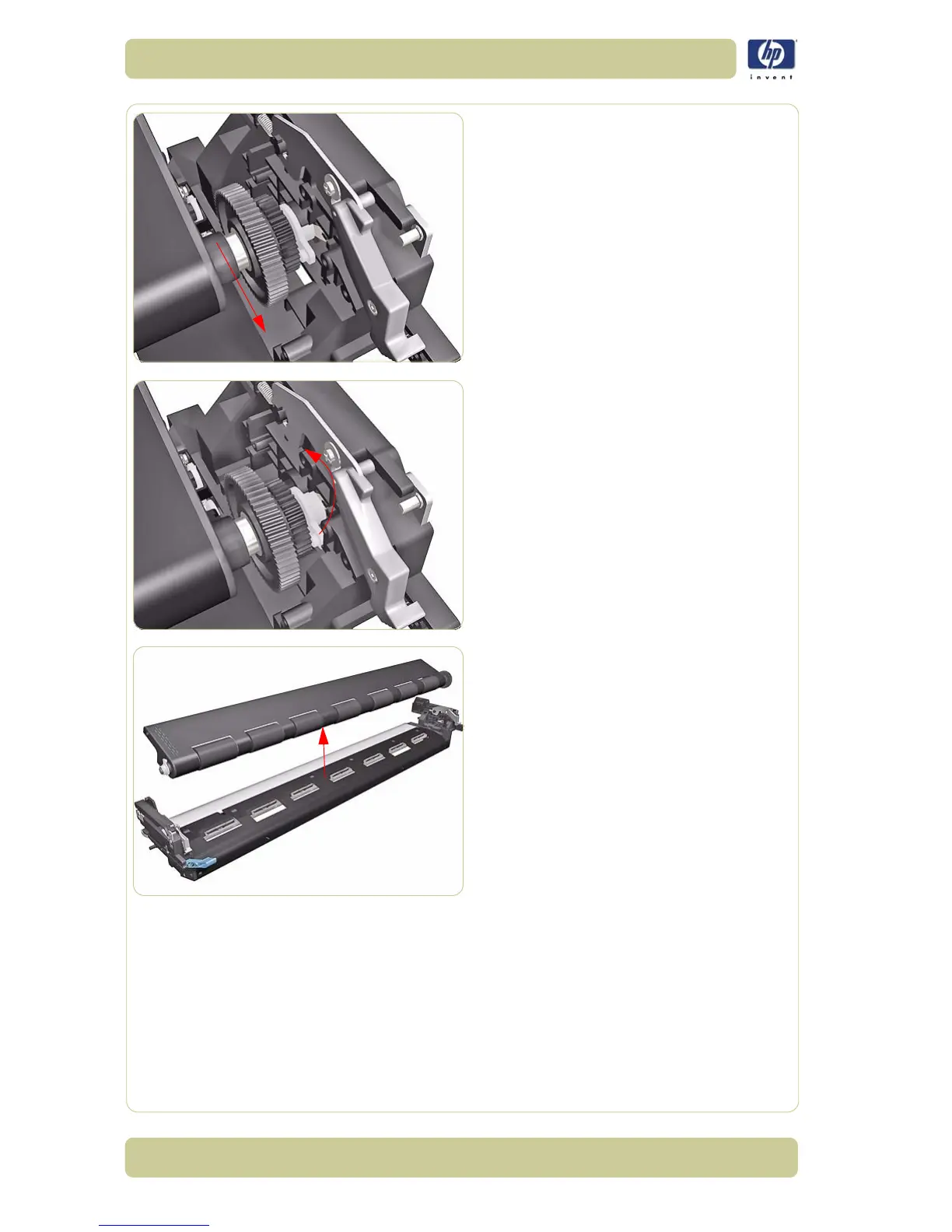

15. In order to rotate the left white bushing to a
position where the Roll 1 Feed Roller can
be removed, slide the left end of the
assembly in the direction of the arrow.
16. Rotate the white plastic bushing on the left
side of the Roll 1 Feed Roller Assembly.
17. Remove the Roll 1 Feed Roller Assembly
