Roll 2 Right Drawer Cover
Removal
Switch off the product and remove the power cable.

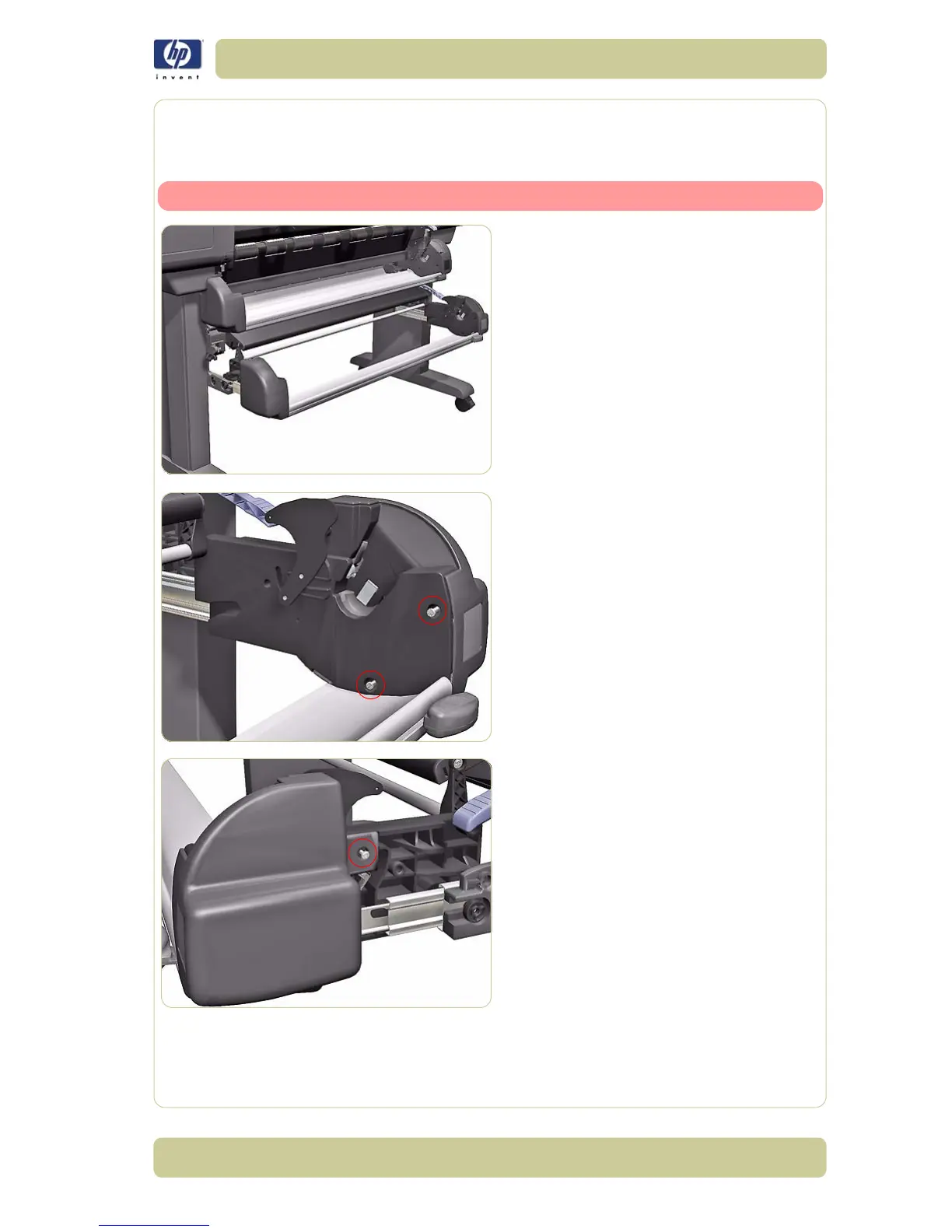

1. Pull out Roll 2 Drawer as far as it will go.
2. Remove two T15 screws (Type S) that
secure the Right Roll 2 Cover.
3. Remove one T15 screw (Type G) that
secures the Right Roll 2 Cover.
