HP Designjet 4500

8-187
Removal and Installation
HP Designjet 4500 Printer Series Service Manual

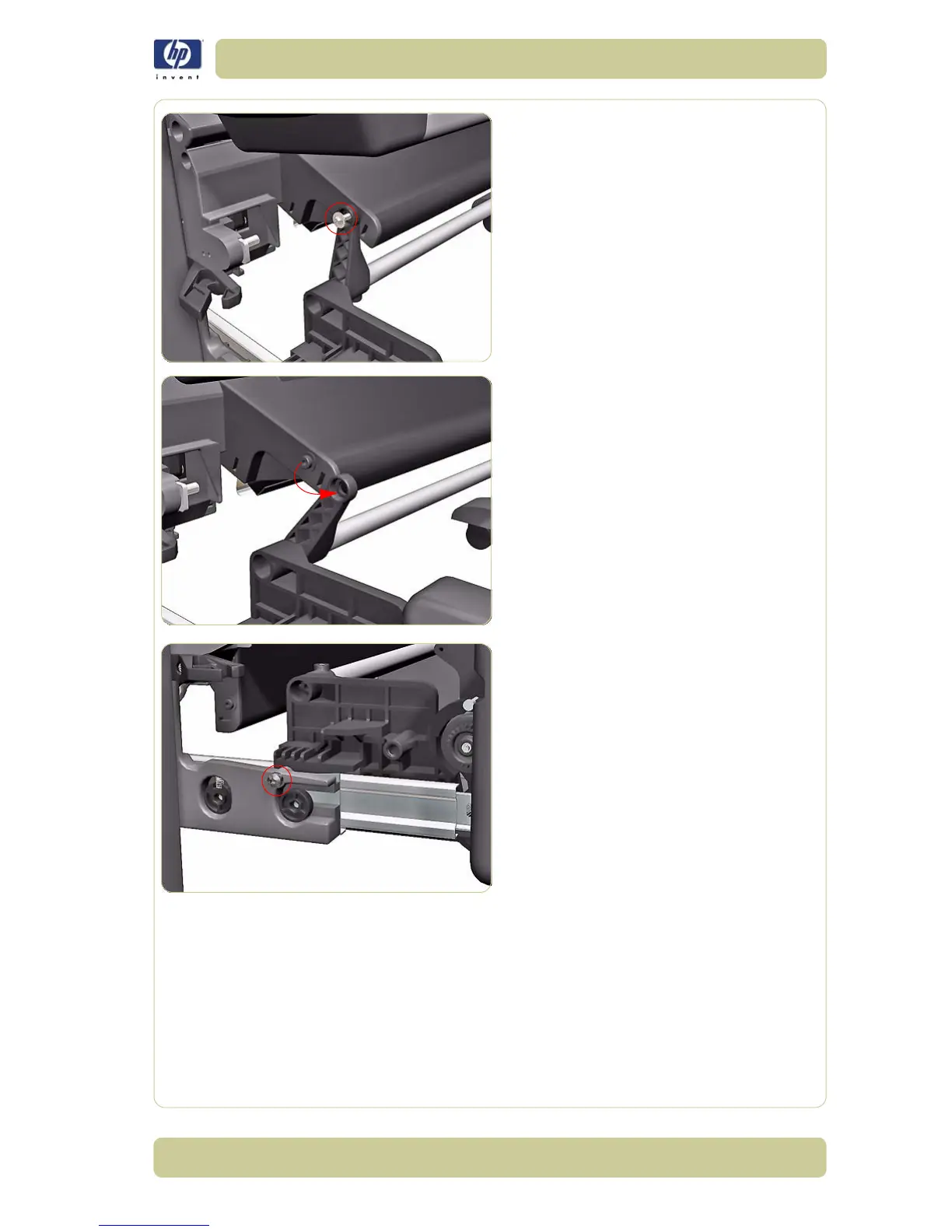

4. Remove one T-15 screw (Type G) and
washer that secures the left side of the Roll
2 Drawer Bar.
5. Remove the left side Roll 2 Drawer Bar.
6. Loosen one T-25 screw from the left side of
the Roll 2 Drawer Slider.
