Removal and Installation
HP Designjet 4500 Printer Series Service Manual

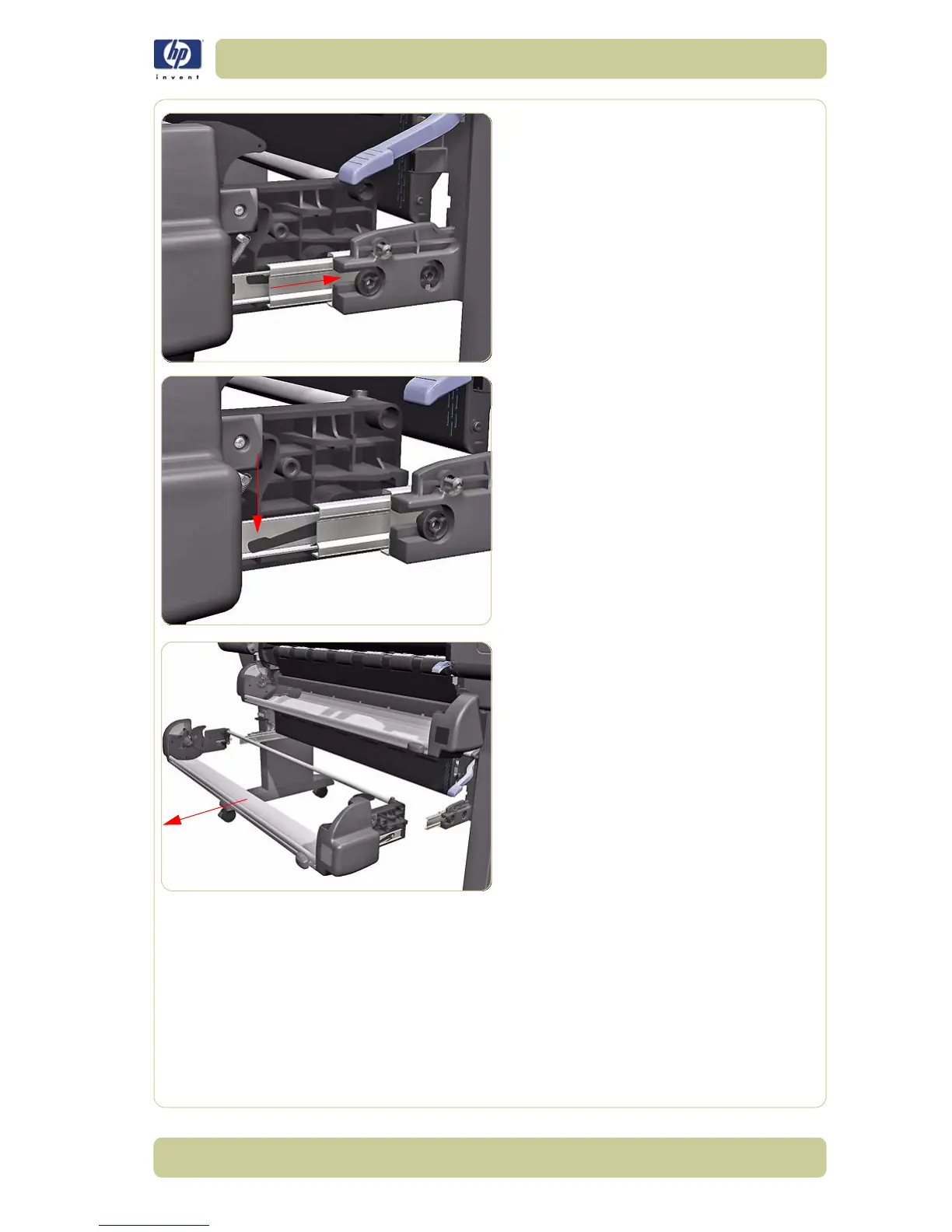

10. Pull back the Metal Slider Bracket on the
right side of the Roll 2 Drawer.
11. Push down on the Roll 2 Slider Locking
Device on the right Drawer Slider.
12. Remove the Roll 2 Drawer.
