HP Designjet 4500

8-201
Removal and Installation
HP Designjet 4500 Printer Series Service Manual

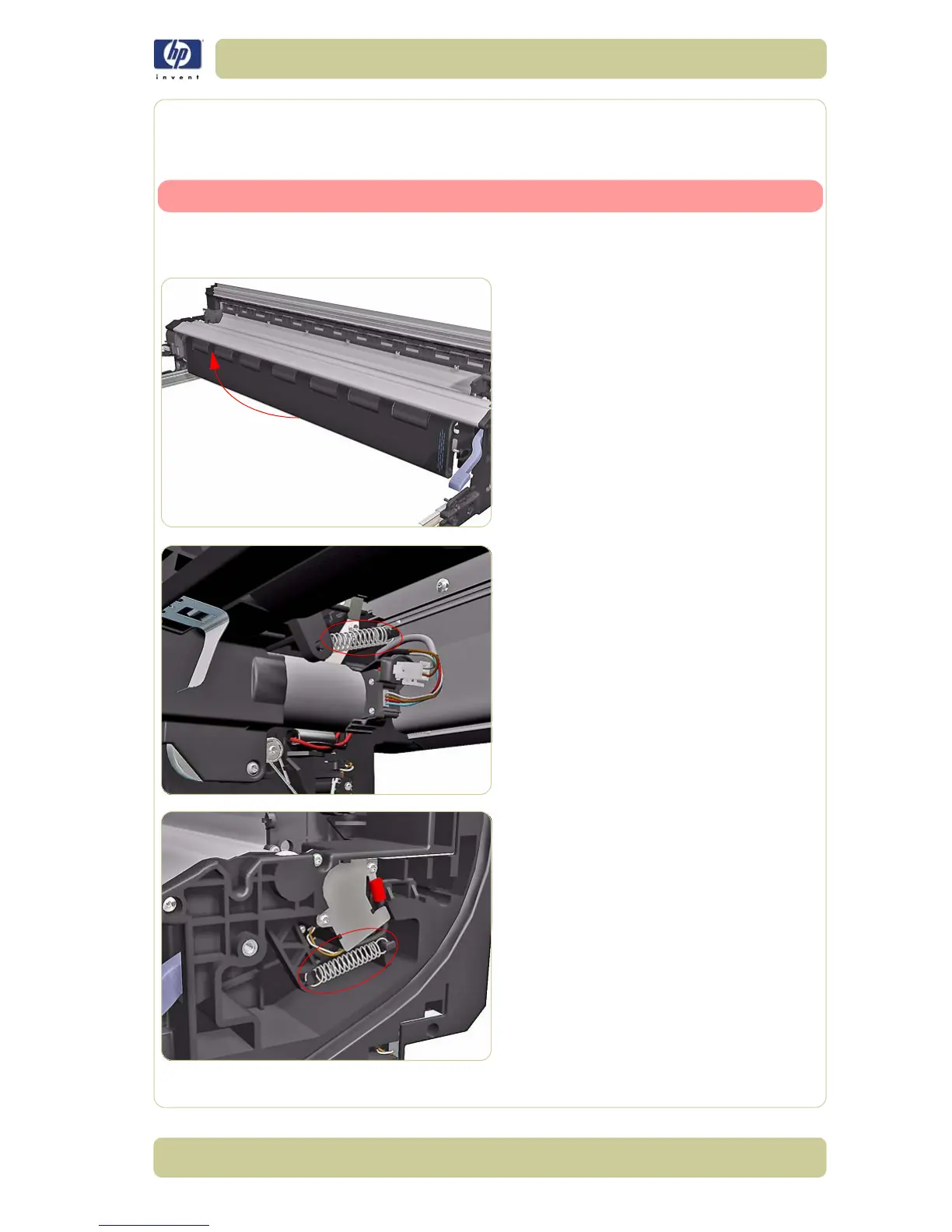

Roll 2 Pinch Rollers
Removal
Switch off the product and remove the power cable.
1. Remove Roll 2 Drawer
⇒ Page 8-186
2. Remove the Roll 2 Module ⇒ Page 8-190
3. Lift up the Roll 2 Paper Feeder.
4. Remove the spring from below the left side
of the Roll 2 Module.
5. Remove the spring from the right side of the
Roll 2 Module.
