Removal and Installation
HP Designjet 4500 Printer Series Service Manual

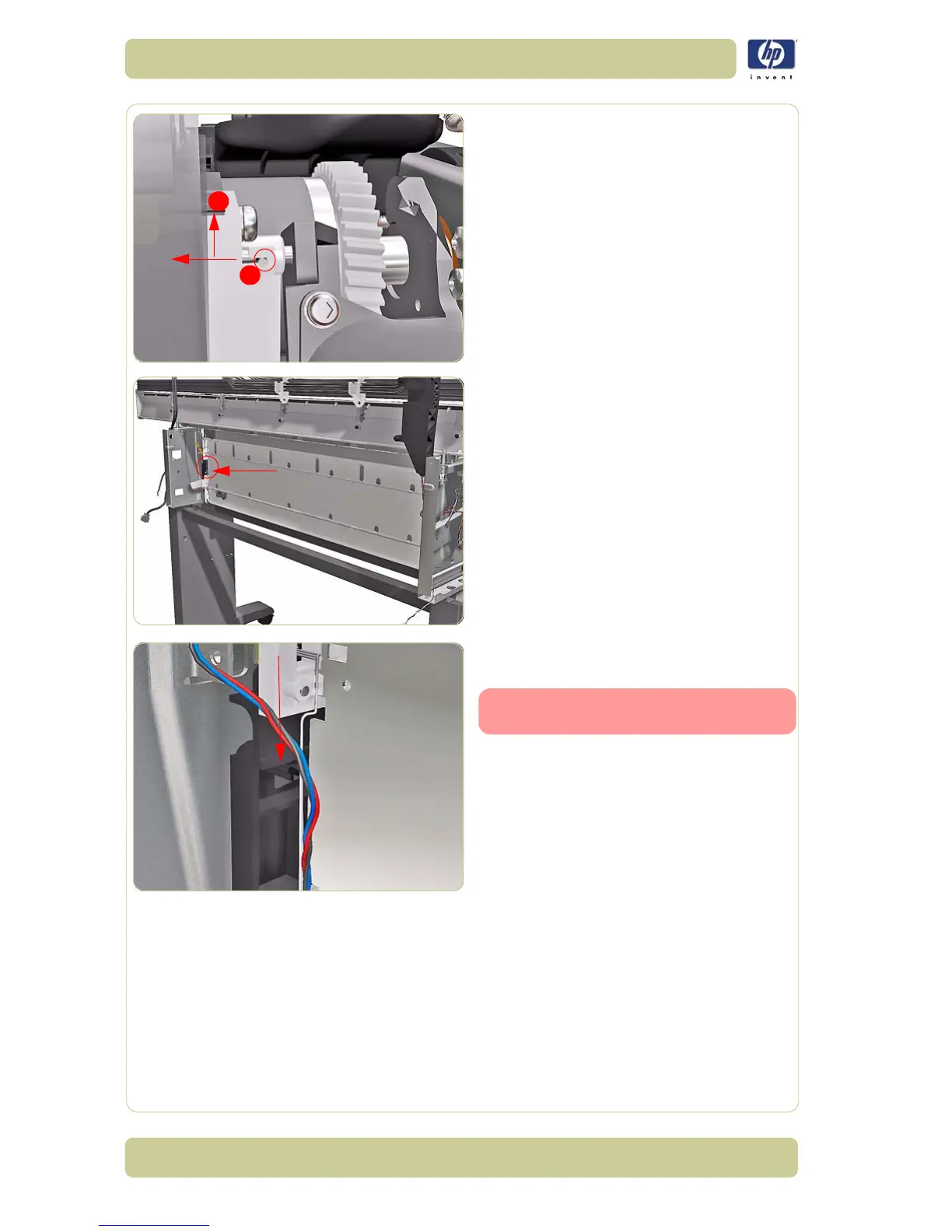

35.Slide the retaining pin on the left side of
the Rear Path to the left (1) and (2) up.
36. Look for a plastic clip on the left side of the
Rear Path, it can be difficult to see.
37. Push the plastic clip down to release the
Rear Path.
This step and the next must be
performed at the same time
2
1
