8-249
Removal and Installation
HP Designjet 4500 Printer Series Service Manual
Lower Front Cover
Removal
Switch off the product and remove the power cable.
1. Remove the Right Cover
⇒
Page 8-242.
2. Remove the Left Cover
⇒
Page 8-244
.
3. Remove the Drive Motor
⇒
Page 8-256
.

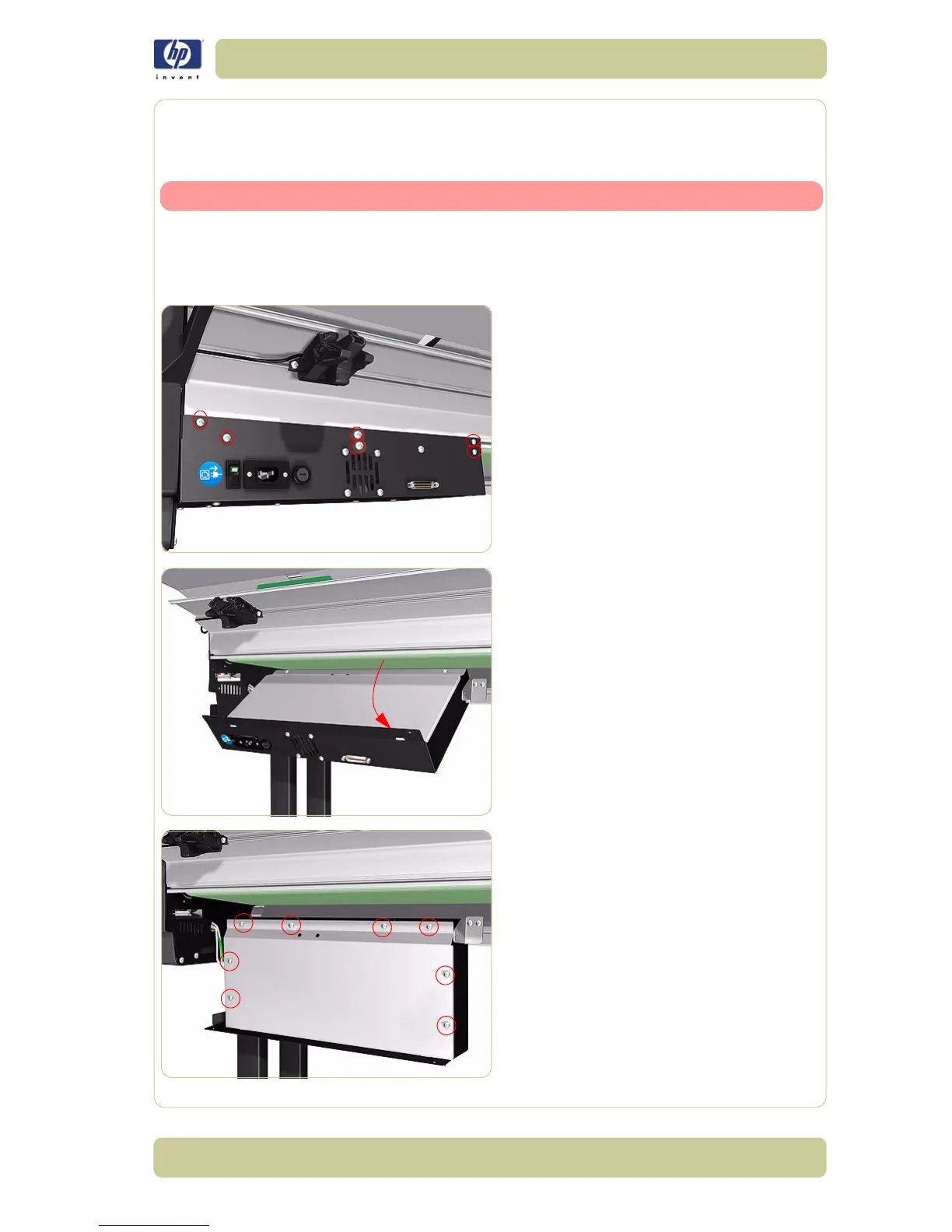

4. Remove six screws that secure the top of
the Electronics Module to the chassis.
5. Pull the Electronics Module down.
6. Remove two screws that secure the
Electronics Module Cover.
To Next Page
