Removal and Installation
HP Designjet 4500 Printer Series Service Manual
Safety Temperature Sensor
Removal
Switch off the product and remove the power cable.
1. Remove the Left Cover
⇒
Page 8-244.

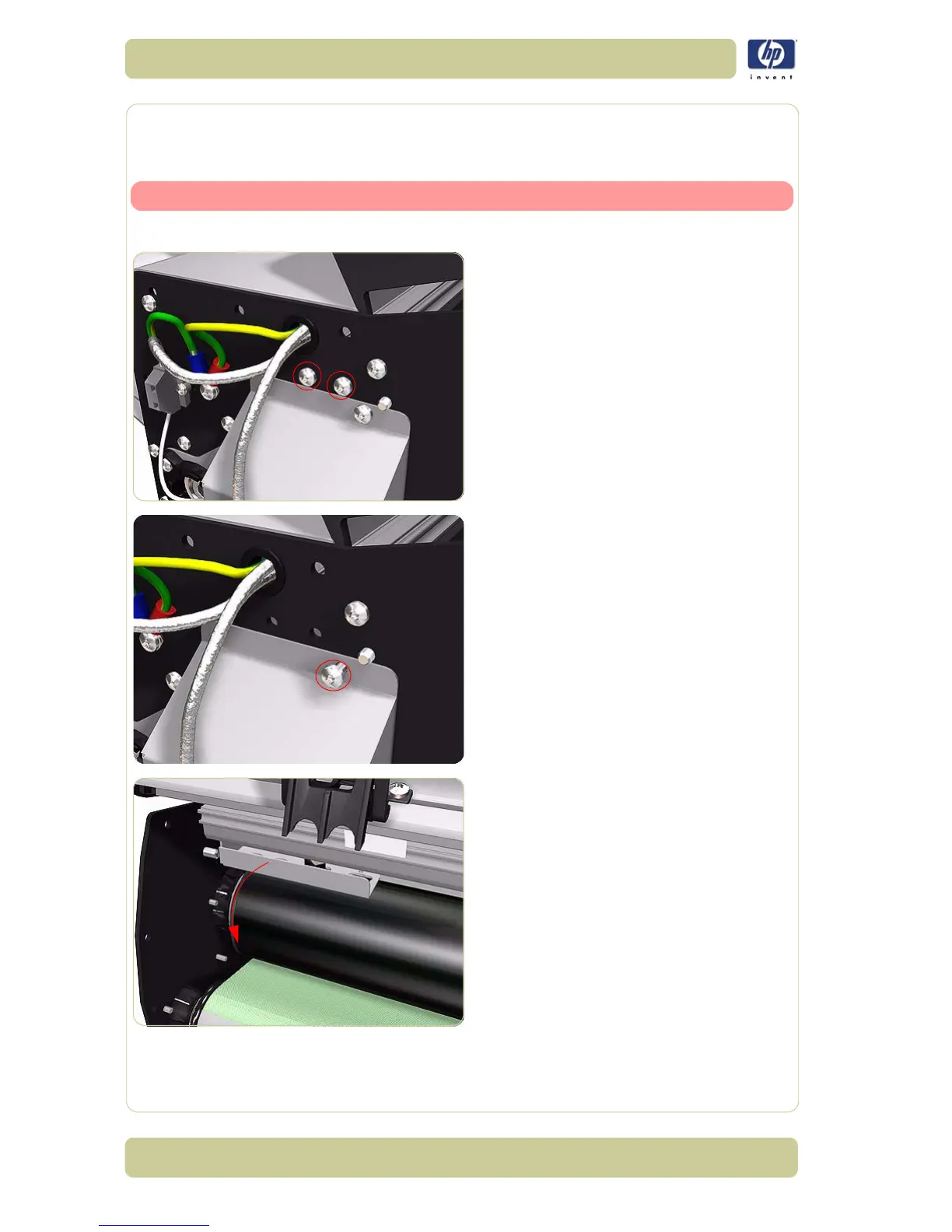

2. Remove two screws that secure the Safety
Temperature Sensor Bracket from the left
side of the chassis.
3. Loosen one screw that secures the top of
the Left Heating Lamp Cover.
4. Slide down the Safety Temperature Sensor
Bracket.
