Removal and Installation
HP Designjet 4500 Printer Series Service Manual
Electronics PCA
Removal
Switch off the product and remove the power cable.

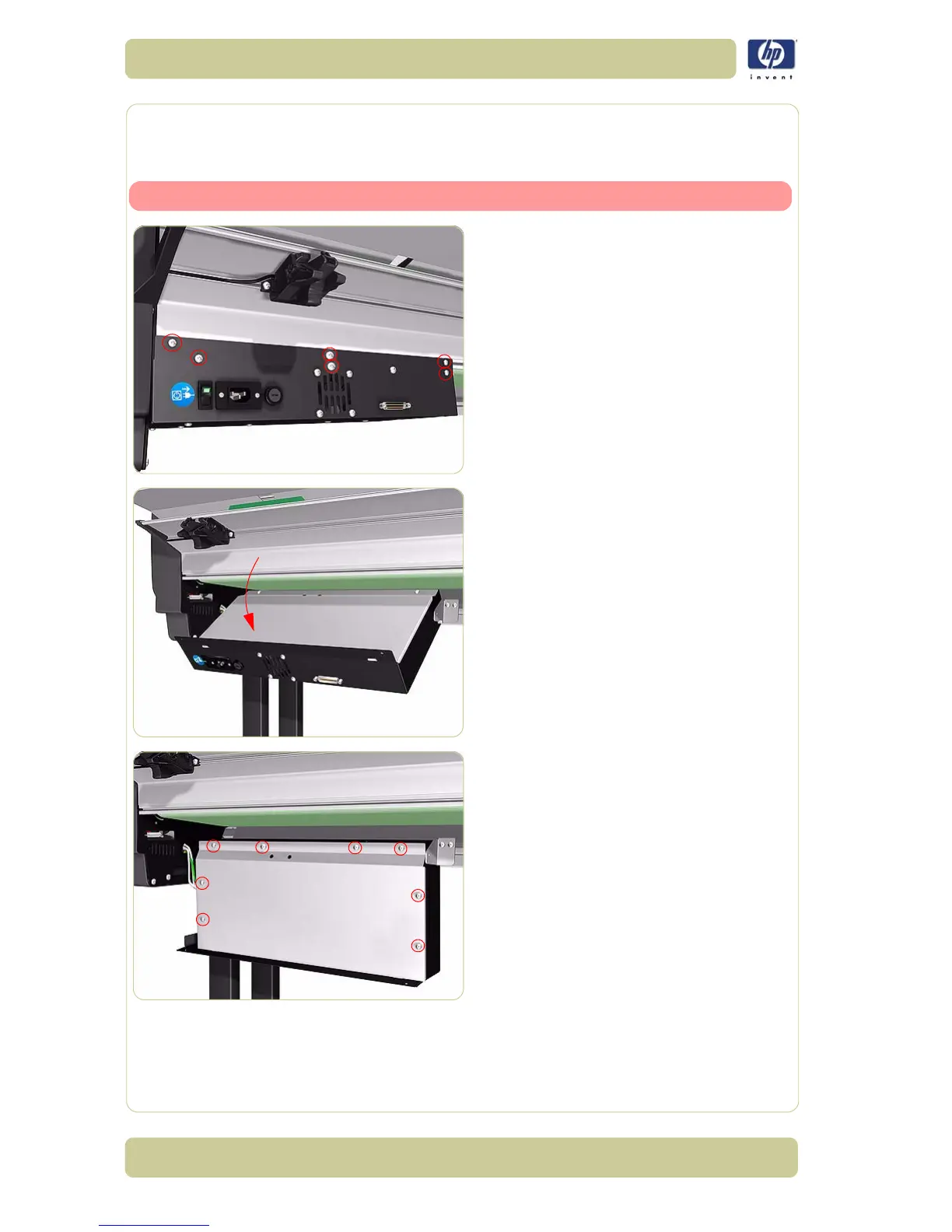

1. Remove six screws that secure the top of
the Electronics Module to the chassis.
2. Pull the Electronics Module down.
3. Remove eight screws that secure the
Electronics Module Cover
