Heat Roller
Removal
Switch off the product and remove the power cable.
1. Remove the Right Cover
⇒ Page 8-242.
2. Remove the Left Cover ⇒ Page 8-244 .
3. Remove the Heating Lamp
⇒ Page 8-282 .

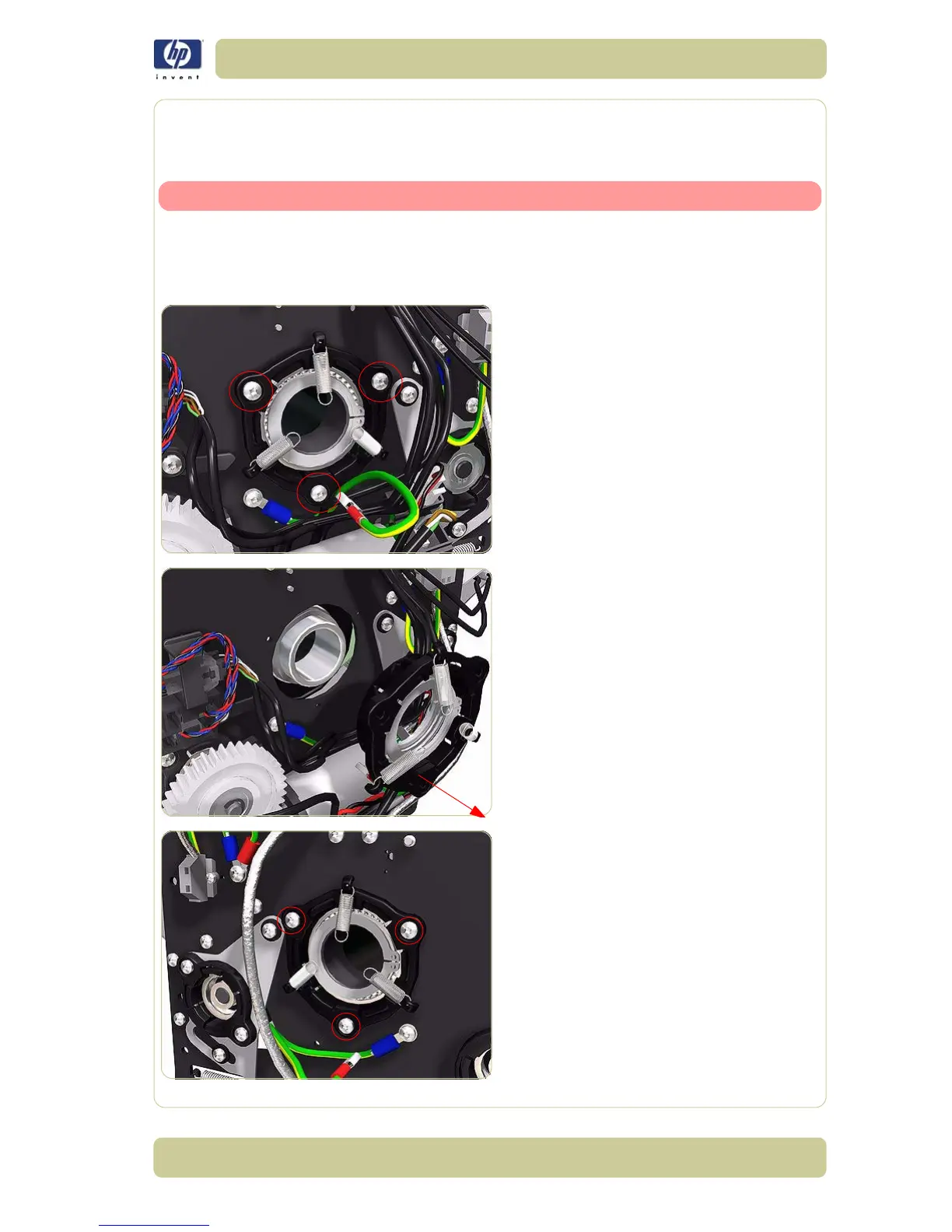

4. Remove three screws that secure the Right
Heat Roller Bearing.
5. Remove the Right Heat Roller Bearing.
6. Remove three screws that secure the Left
Heat Roller Bearing.
