HP Designjet 4500

8-289
Removal and Installation
HP Designjet 4500 Printer Series Service Manual
Stacker Transport Belt
Removal
Switch off the product and remove the power cable.
1. Remove the Right Cover
⇒ Page 8-242.
2. Remove the Left Cover ⇒ Page 8-244 .
3. Remove the Drive Motor
⇒ Page 8-256 .
4. Remove the Heating Lamp
⇒ Page 8-282
5. Remove the Heat Roller ⇒ Page 8-287.

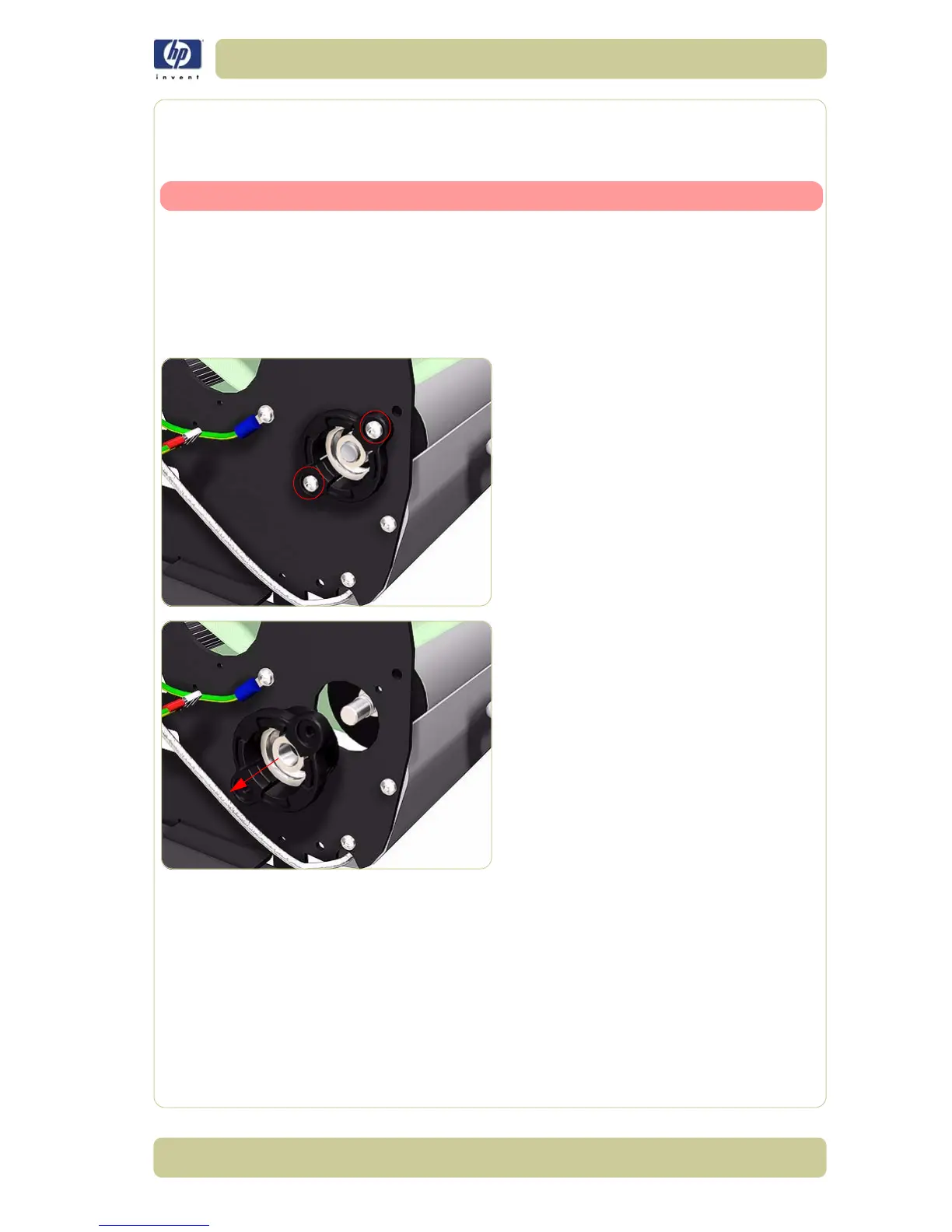

6. Remove two screws that secure the Left
Output Roller Bearing.
7. Remove the Left Output Roller Bearing.
