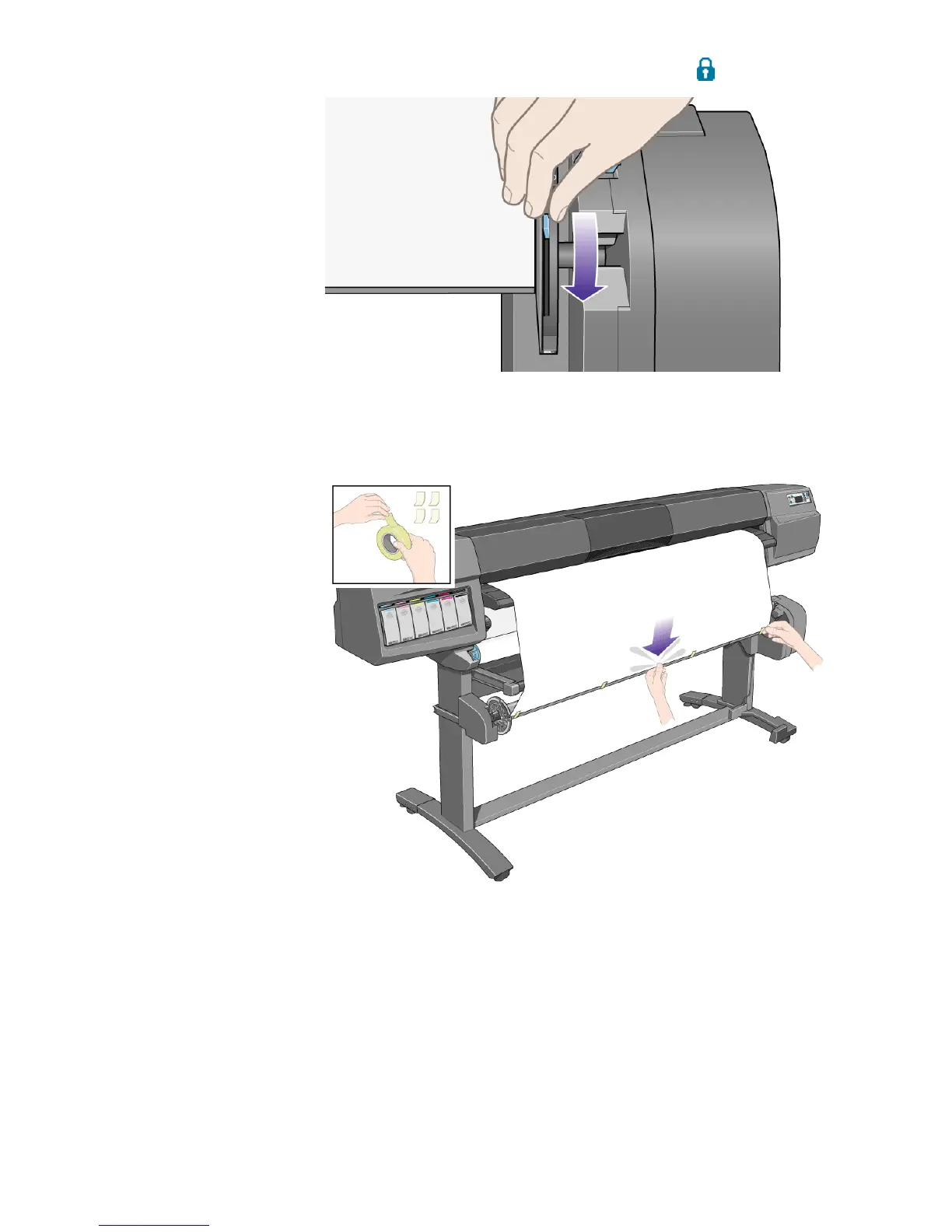

5. When you have adjusted the position of the core, pull the adjustment
levers on both spindle guides to the locked
position.
6. Pull the printing material taut to the position shown below. Do not
attempt to pull more printing material out of the printer; if you need
more material, use the front panel. Use tape to secure the printing
material to the core tube.
7. To avoid the printing material skewing as it is wound onto the core
tube, ensure it is straight when it is attached.
8. Press the ↓ key on the front panel to advance the printing material.
Enough should be advanced so that the printing material can wrap at
least once around the core as shown below.
