11. Carefully insert the media weight. Ensure that the end caps are
installed and extend over the edges of the printing material.
12. It is important that the media weight is inserted. The take-up reel will
not function properly without it.
13. Press Enter on the printer's front panel, which will then display the
Ready message.
When the take-up reel is in operation it is important to ensure that the
take-up reel sensor is not blocked.

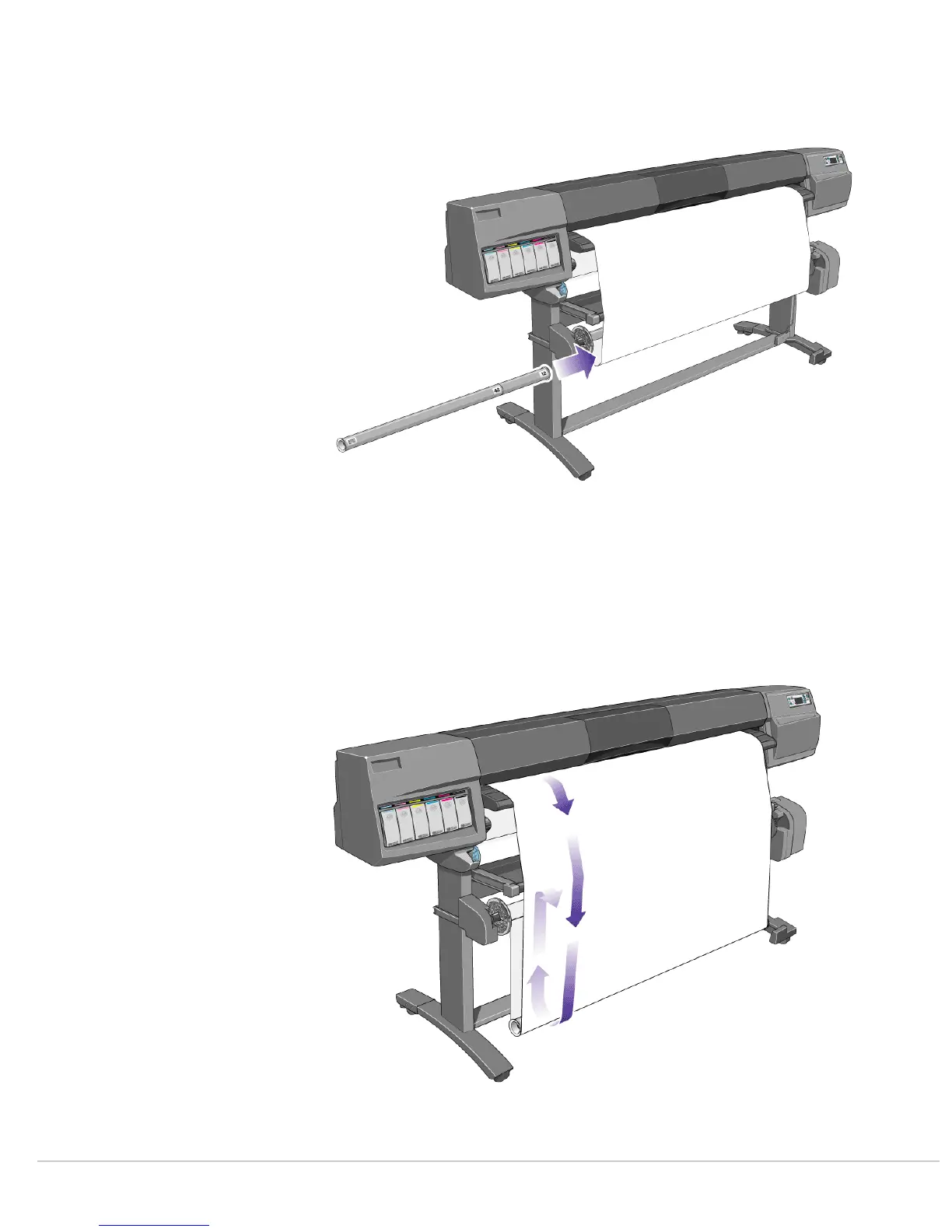

14. Shown below is how the printer will look when it is in operation. As
printing material is fed from the printer it drops down in a loop and up
into the take-up reel spindle.
