HP DesignJet Series - Page 145

7-13
Removal and Installation
HP Designjet Ultra Low End Printer Service Manual
Ink Supply Station Cover (Applicability: 70, 100, 100plus,
110 p lus)
Removal
Switch off the product and remove the power cable.
1. Remove the Center Cover
⇒ Page 7-7 .
2. Remove the Right End Cover
⇒ Page 7-9.

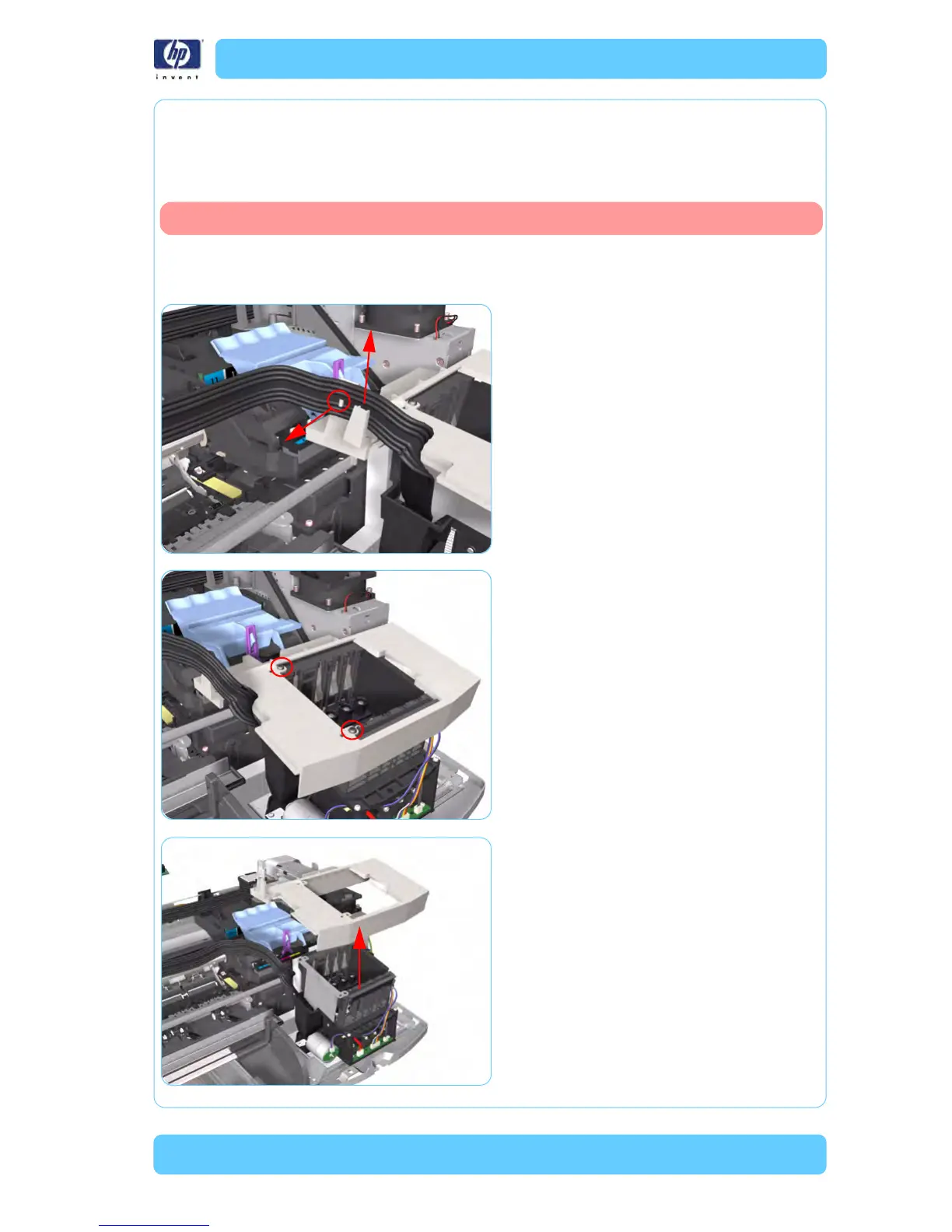

3. Release the Ink Tubs from the clip on the
ISS Cover.
4. Remove 2 screws that secure the ISS Cover
to
the Ink Supply Station.
5. Remove the ISS Cover from the Printer.
