7-28
Removal and Installation
HP Designjet Ultra Low End Printer Service Manual

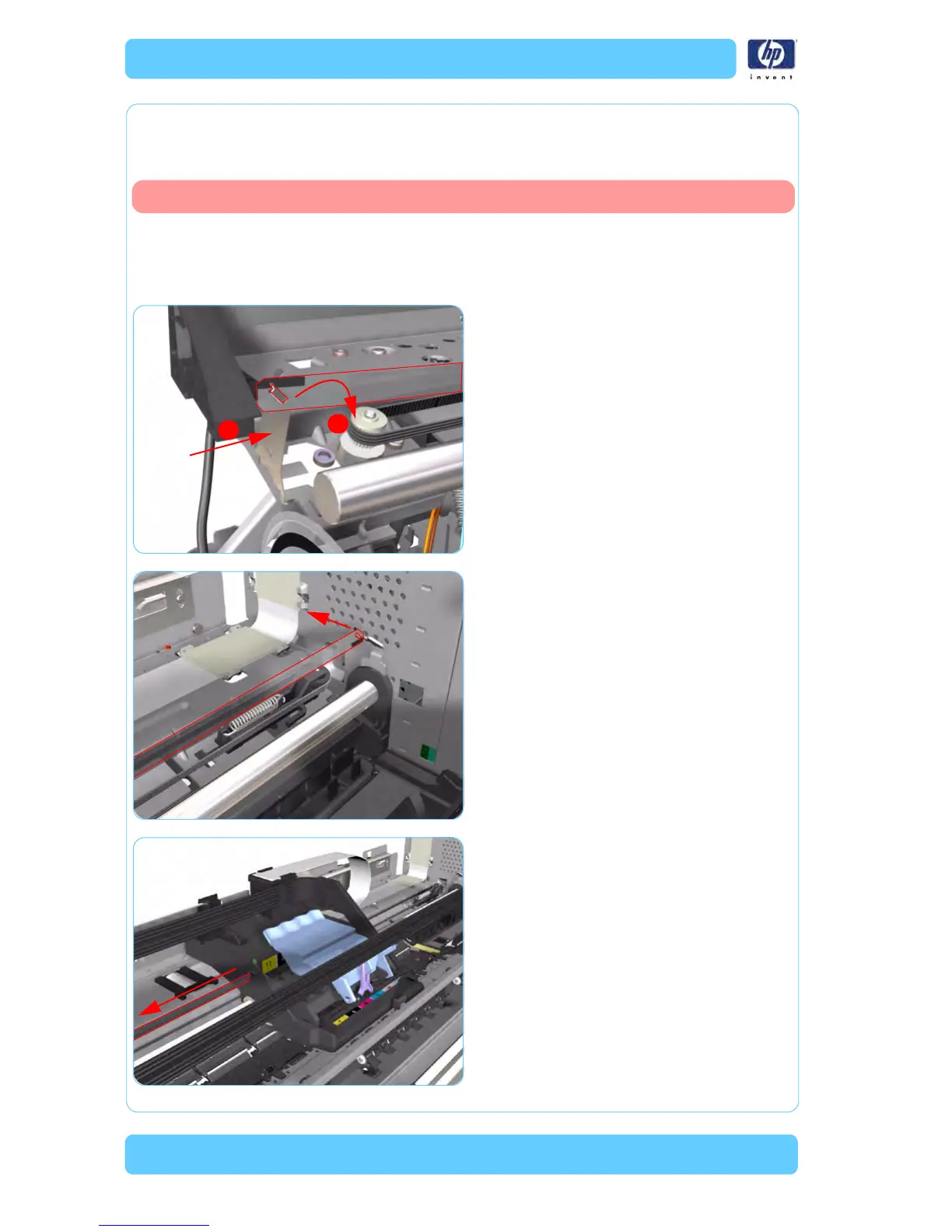

Encoder Strip
Removal
Switch off the product and remove the power cable.
1. Remove the Center Cover
⇒
Page 7-7
2. Remove the Right End Cover
⇒
Page 7-9
.
3. Remove the Left End Cover
⇒
Page 7-11
.
4. Release the Encoder Strip from the left
hand si
de of the Printer.
5. Release the Encoder Strip from the right
hand si
de of the Printer.
6. Gently slide out the Encoder Strip through
the Ca
rriage Assembly and remove from
the Printer.
1
2
To Next Page
