7-33
Removal and Installation
HP Designjet Ultra Low End Printer Service Manual
6.

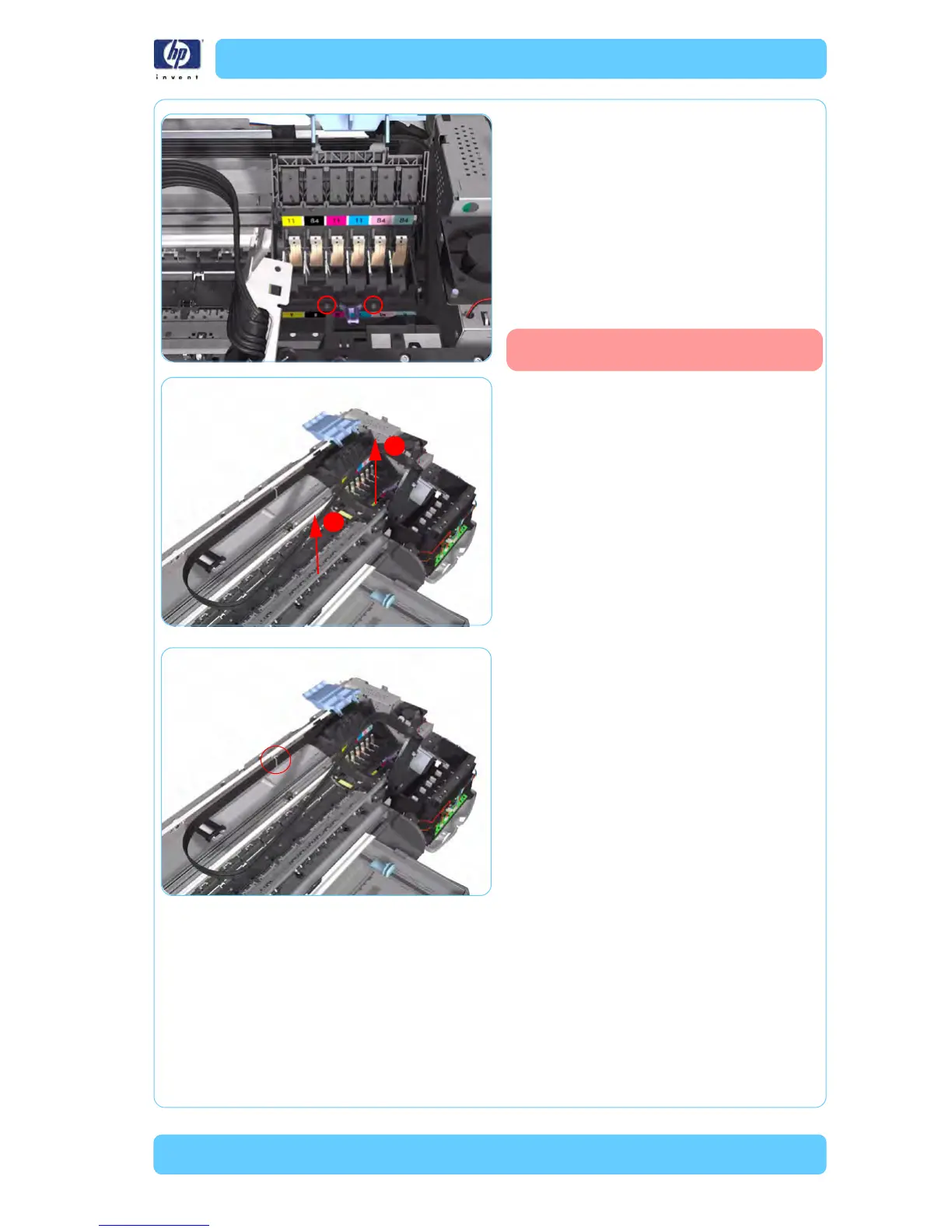

Open the Printhead Cover and remove 2 T-8
screws that secure the Tube Crane to the
Carriage Assembly.
The following step only applicable
to 70, 100, 100+, 110plus
7. Lift up the Tube Crane (1) to release the PH
Cover (2) from the Carriage Assembly and
remove from the Printer.
8.
Release the Ink Supply Tubes from the
Raceway Holder.
Release Tubes
1
2
To Next Page
