HP Designjet T Series — Service Manual 6-217
Removal and Installation - Encoder Disk and Encoder Sensor

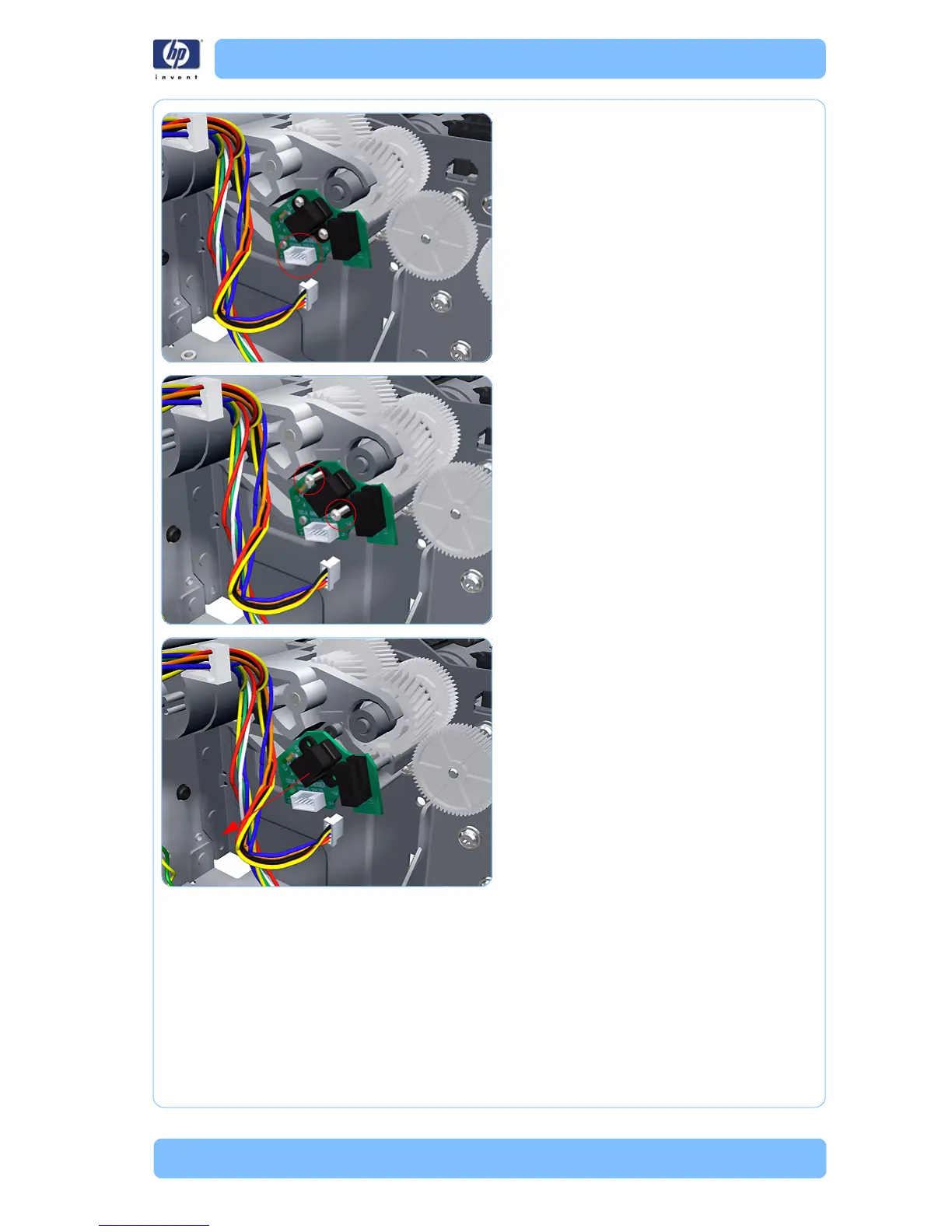

5. Disconnect the Encoder Sensor connector.
6. Remove two T-6 screws that secure the
Encoder Sensor to the Media Advance
Drive.
7. Remove the Encoder Sensor PCA from the
printer.
