HP DESIGNJET T7100 Monochrome Series

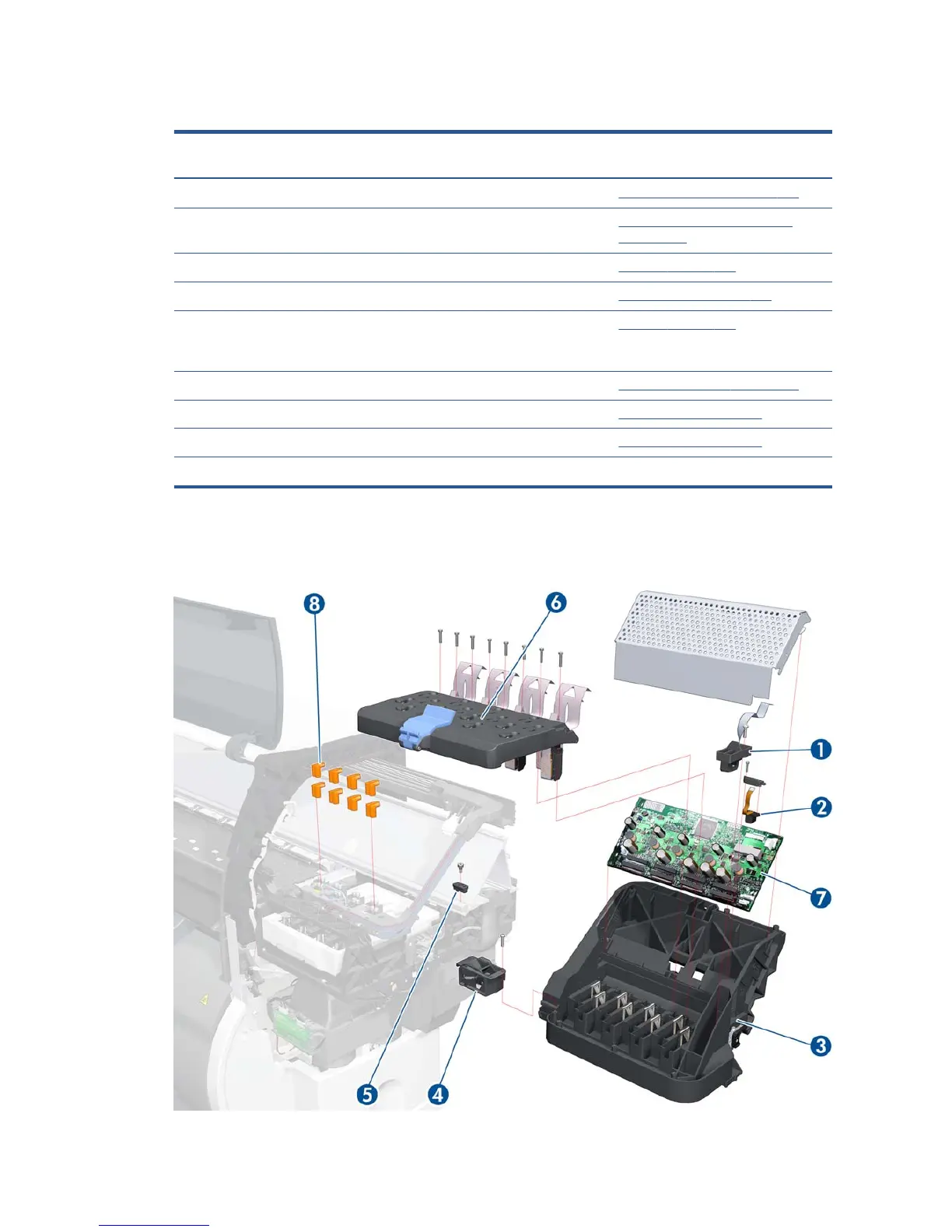

Carriage Assembly
Number
in figure
HP part number Description Cross-reference
1 CQ105-60130
Line Sensor Assembly
a
Line Sensor Assembly on page 298
2
CQ105-67053
Encoder Sensor (includes Encoder Strip)
Encoder Strip and Encoder Sensor
on page 294
3 CQ109-67011
Carriage Assembly
b
Carriage on page 283
4 CH955-67007 Cutter Assembly
Cutter Assembly on page 341
5 Q6651-60341 Carriage Stopper (includes Carriage
Stopper Screw and Media-Axis Motor
Bracket)
Carriage on page 283
6 Q6651-60337 Carriage Flex Cables
Carriage Flex Cables on page 292
7 CQ109-67034 Carriage PCA for T7100
Carriage PCA on page 290
7 CQ101-67011 Carriage PCA for T7100 Monochrome
Carriage PCA on page 290
8 Q6651-60335 Setup Printhead Kit
a. Includes Line Sensor Holder and Cable
b. Does not include Carriage PCA or Encoder Sensor
196 Chapter 8 Parts and diagrams ENWW
