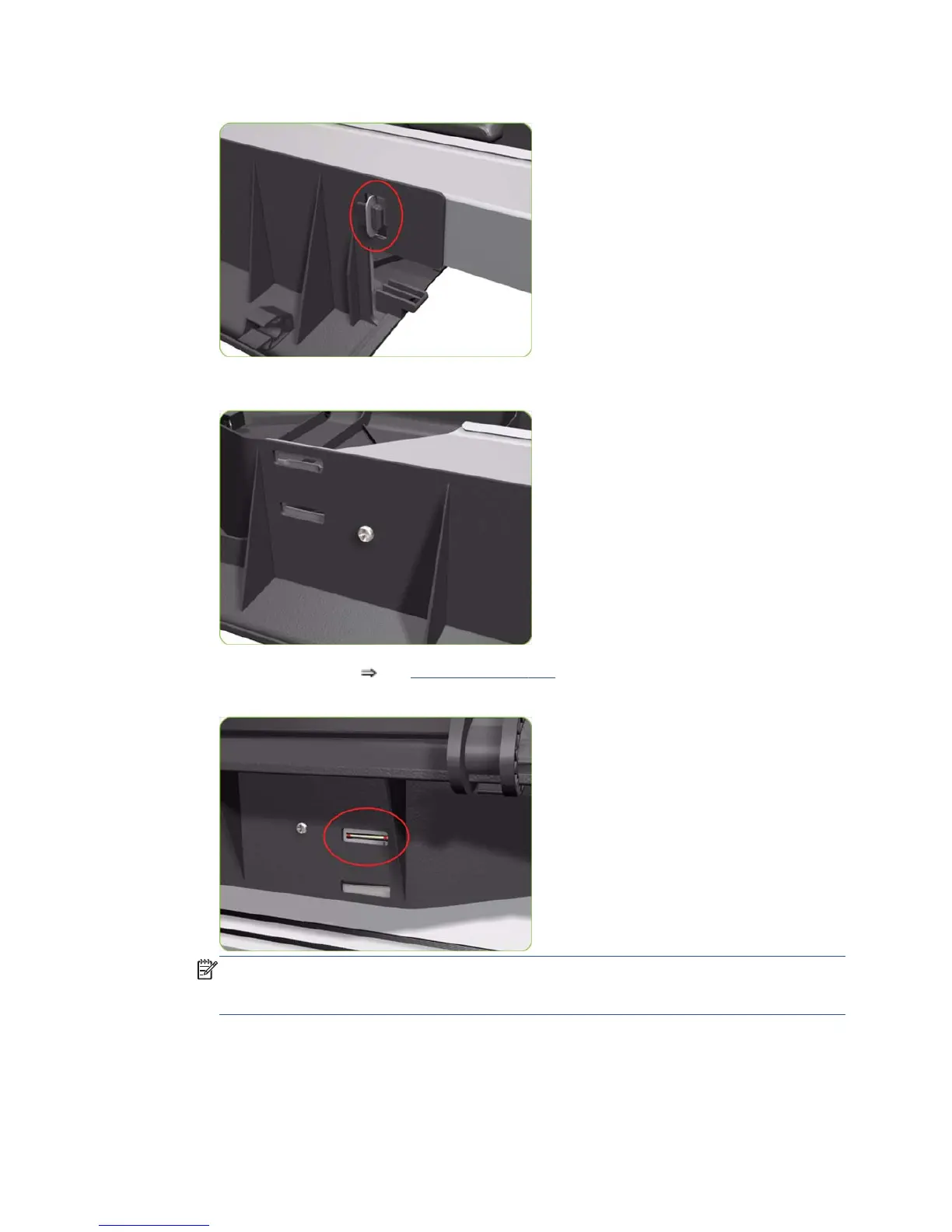

2. Lock the Metallic Support on to the Top Cover.
3. Install the T-20 screw that secures the Metallic Support to the Top Cover.
4. Remove the Window ( See Window on page 228) from the old Top Cover and install it on the
new Top Cover.
NOTE: When installing the Ink Supply Tubes and Trailing Cable on to the Top Cover, take note
of the of the two red marks on the Ink Supply Tubes. These two red marks should be aligned with
the first slot in the Top Cover as this will help with the rest of the installation.
