Connector Cover, Left
Removal

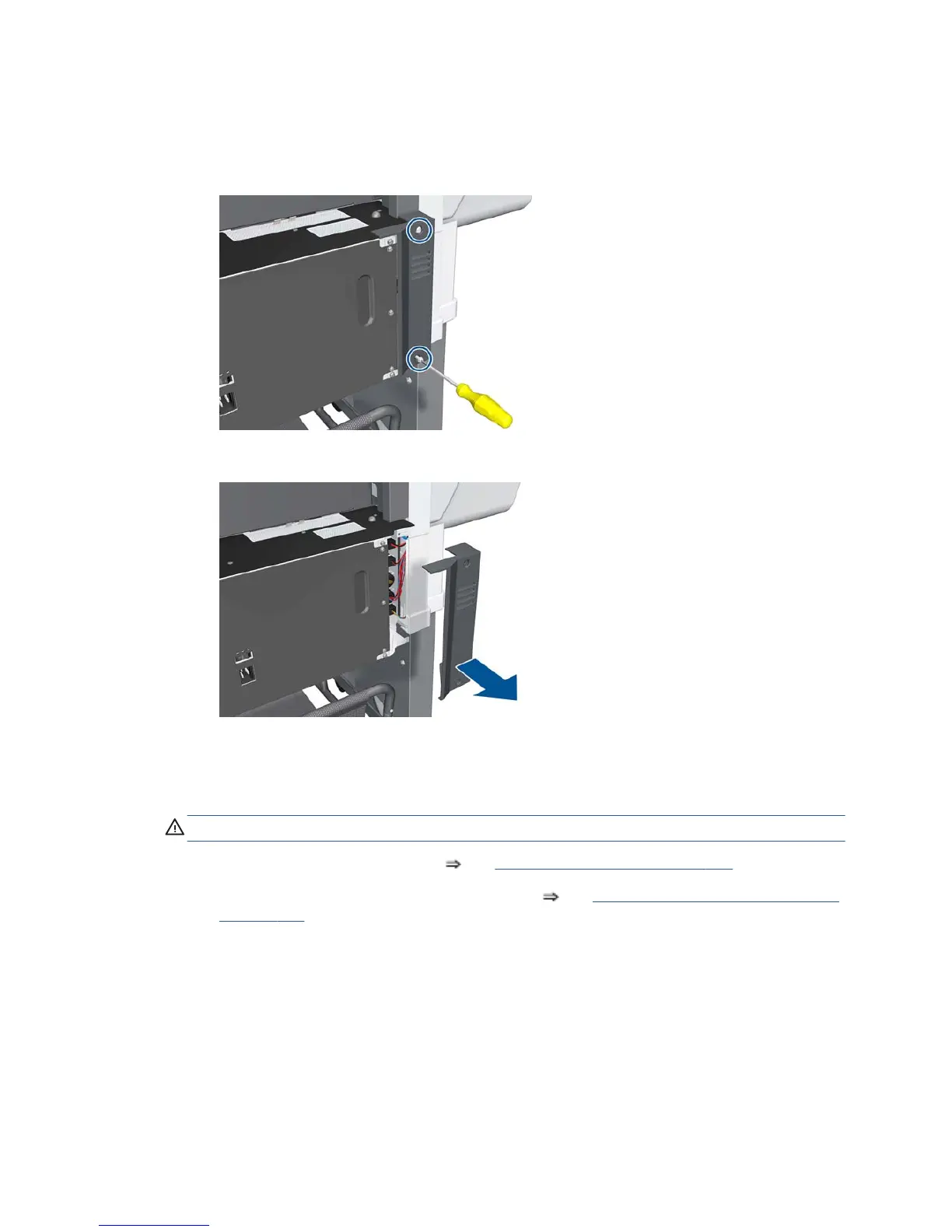

1. Remove two T-20 screws from the Left Connector Cover.
2. Remove the Left Connector Cover.
Front Panel
Removal
WARNING! Switch off the printer and remove the power cable.
1. Remove the Right Connector Cover See Connector Cover, Right on page 236.
2. Remove the Right Smart Roll-loading System Cover
See Smart Roll-loading System Cover, Right
on page 258.
