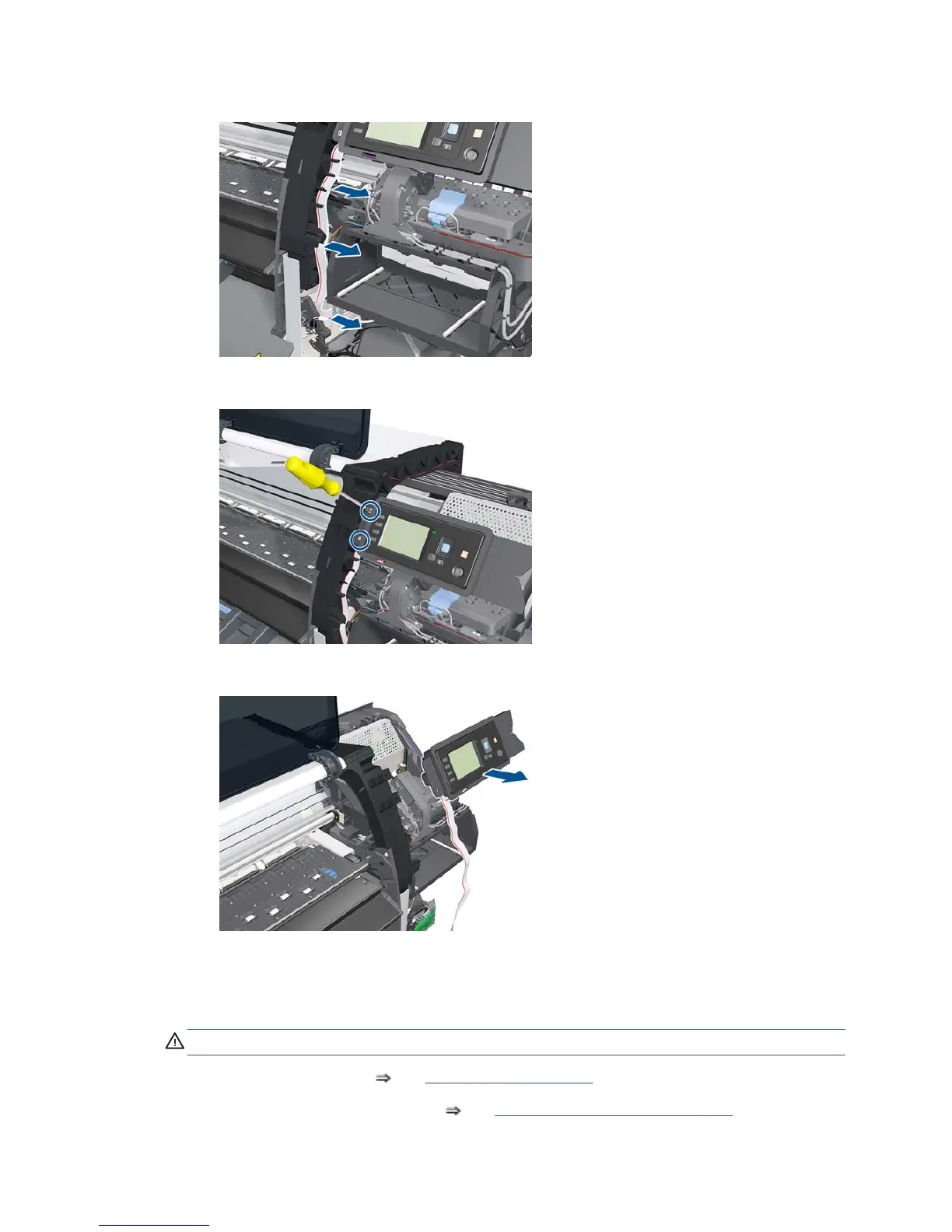

6. Release the cable from the Right Arc.
7. Remove two T-15 screws from the Front Panel.
8. Remove the Front Panel.
Primer Assembly
Removal
WARNING! Switch off the printer and remove the power cable.
1. Remove the Right Cover See Cover, Right on page 224.
2. Remove the Right Connector Cover
See Connector Cover, Right on page 236.
